TEKO introduces a new model in the TEKMAG range with different dimensions. Hand-held enclosure , moulded in TEKNIUM®, a special magnesium alloy, that will convince You thanks to the ultra-light weight, the absolute strength, and the shielding properties of the three models available. The side profiles have a special black soft-feel surface to assure a secure grip. The model is equipped with IP67 sealing kits. The versions with “B” have a battery compartment for two 1,5 mignon cells (AAA) while the models with “B2” have a battery compartment for four 1,5V mignon cells (AAA). The recessed area on the covers can accept a keypad membrane or a LCD display. Closure by four screws. Two-tone colour version: Graphite grey /Black RAL 9004.

Series of small anodized aluminium enclosures with multi-shot moulded (ABS+TPU) two-tone coloured front cover panels. They have co-moulded sealing to protect against water and from dust (IP65). The internal guides allow an easy assembly of PCB. Closing by eight screws.

New models from TEKNET series featuring an increased height. ABS hand-held enclosures with elastomer grips (TPU) on the sides. Matt surface finishing. The recessed area on the cover is suitable to accept a keypad membrane or an aluminium panel. The models with “B” have a battery compartment for one 9V Battery (PP3) or two 1,5V cells (AA). The models with “B2” have a battery compartment for two 9V batteries (PP3) or four 1,5V cells (AA). Closing by four screws. Upon request, aluminium panel “APTB”; standard keypad membrane “M”, “MW”, “M58”, “M59”.

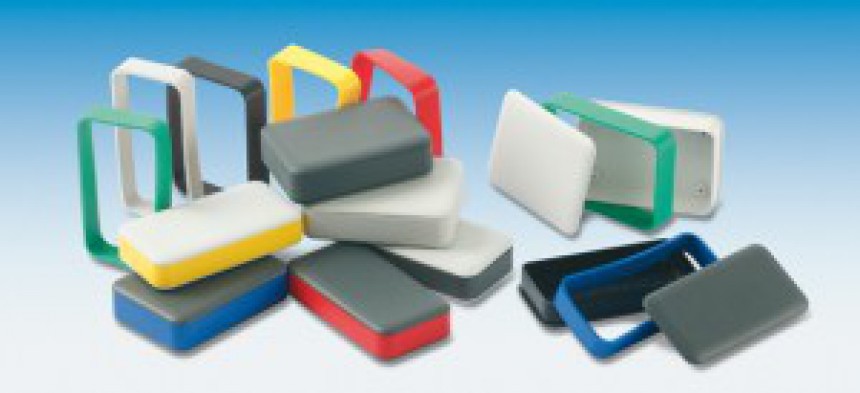

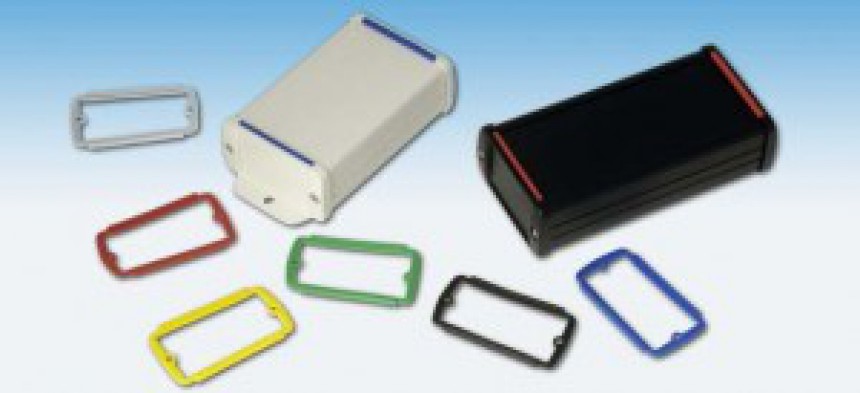

Rectangular rings especially designed as accessories for the “WITEK”-Series and developed to improve protection from powder and against water. They are available in seven different colours to obtain a tailor-made solution reflecting the identity of customer or application. From quick and easy assembly, they fit perfectly all around the closed box.

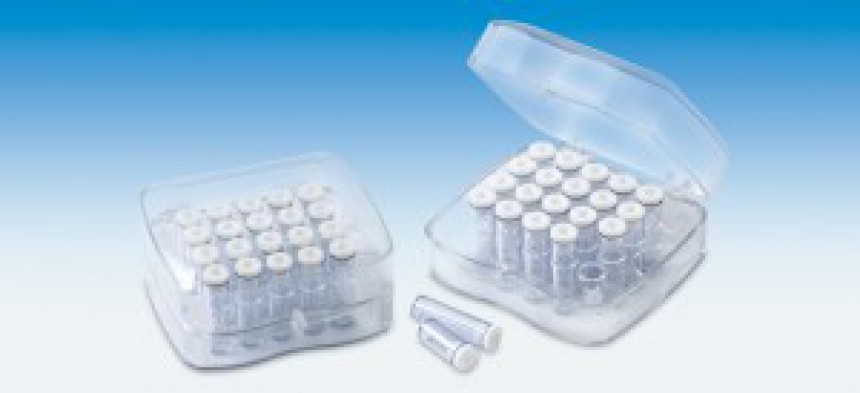

Attractive and modern designed, this box is moulded in transparent metacrylate. It holds twenty tubes with a height of 25 mm or of 40 mm, ideal to store and organise small electronic components.

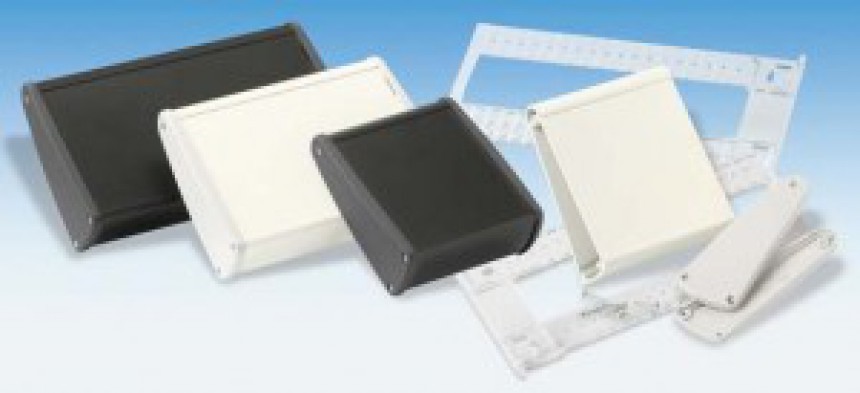

Extruded aluminium case with powder coating and two rubber sealing kits to protect against water and from dust (IP65) available in six different colours. Two metal front panels, internal slots for PCB's and a recessed area for a keypad membrane. The models with "E" have mounting wall metal panels. Closing by four or eight screws.

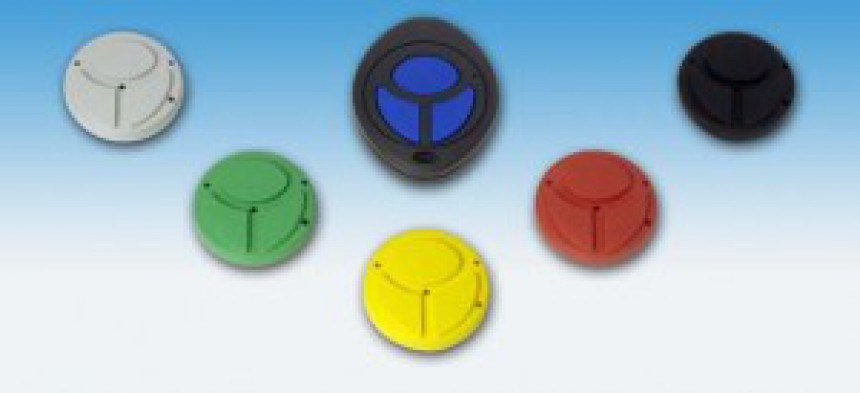

Ergonomic designed ABS pocket enclosures with one, two or three push-buttons,available in six different colours, configuration. Space for round PCB (35 mm.) with button cells batteries. The model "OVO-3/0" has no buttons. Matt surface finish. Simple interlocking assembly.

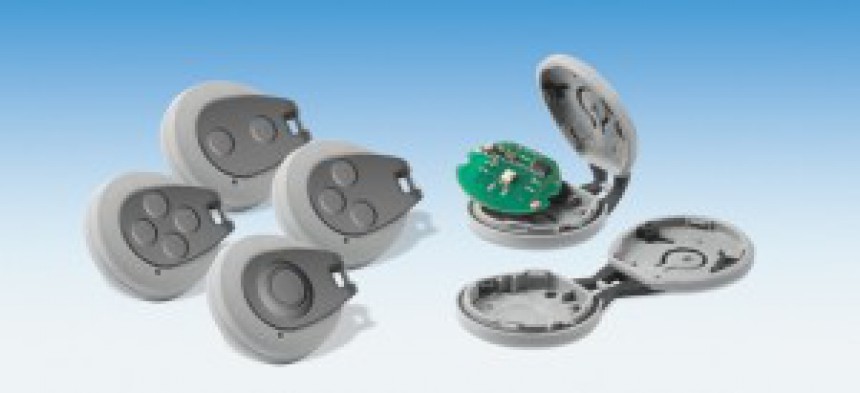

Small enclosure with ergonomic design, moulded in two materials, using multi-shot injection.Four models available, from one to four push buttons figuration. Protection class up to IP 65. Base with integral PCB mounting studs. Closing by two screws. Two-colours combination: Grey RAL 7046/ Black RAL 9004 . Applications: transmitters, personal security, home automation.

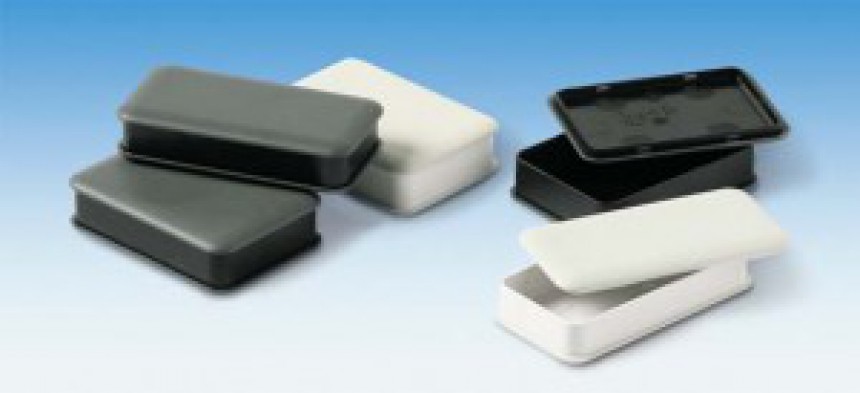

Series of enclosures moulded in two-materials (ABS/PC and TPU) with snap-on closing. Base with integral mounting studs for PCB. Two combinations of colours available: Black RAL 9004/Dark grey RAL 7012 - White RAL 9002/Light grey RAL 9018.

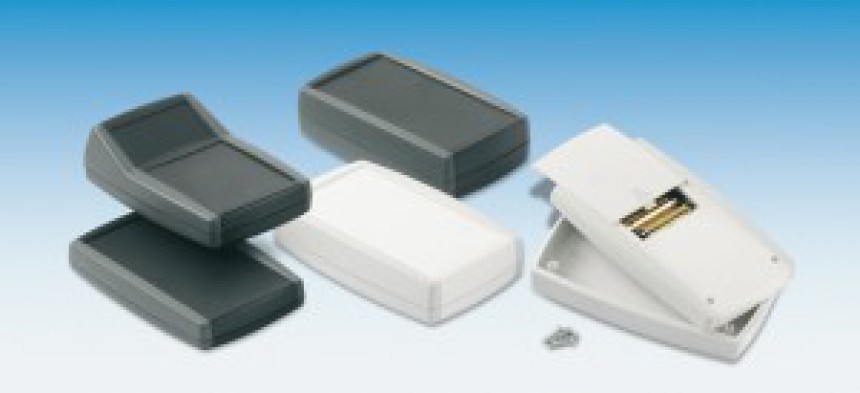

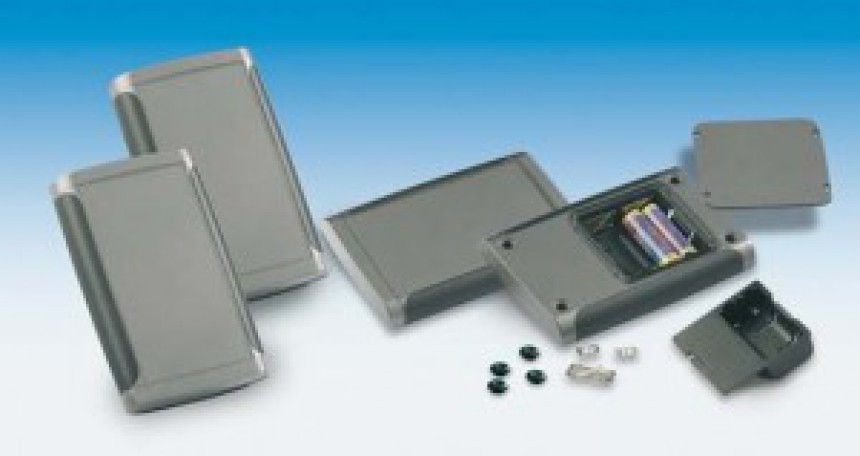

ABS Hand-Held enclosure with soft-touch elastomer grips (TPU) on the side. Matt surface, recessed area for membrane keyboard or displays. The models with "B" have a battery compartment for two 1,5V mignon cells (AA) or one 9V battery (PP3). The models with "B2" have a battery compartment for four 1,5V mignon cells (AA) or two 9V batteries. Closing by four screws. Two combinations of colours: Black RAL 9004/Dark grey RAL 7012 - White RAL 9002/Light grey RAL 9018.
