Description

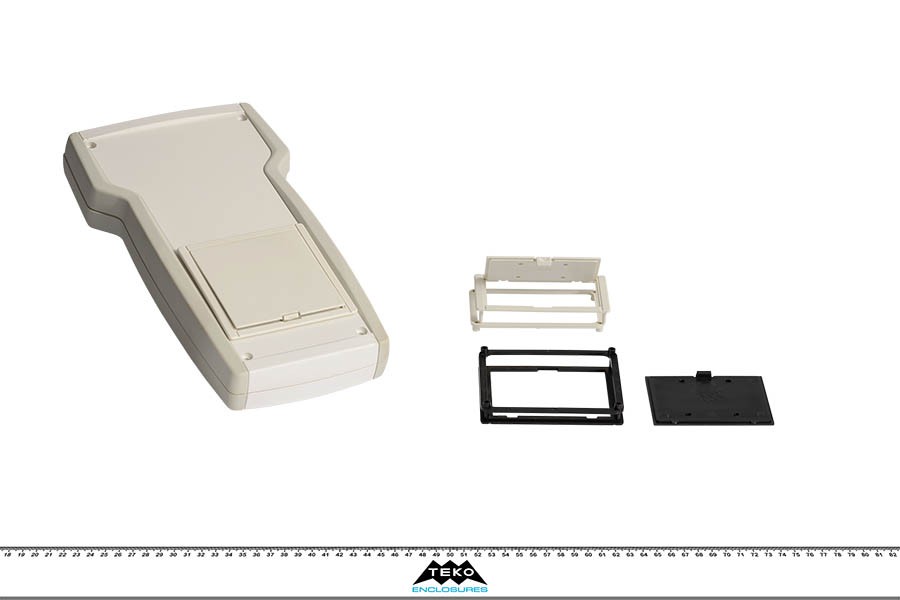

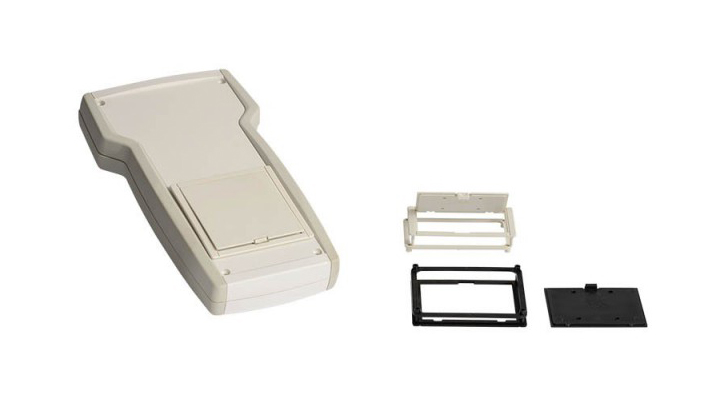

BATTERY COMPARTMENTS
Products
| |
|---|---|

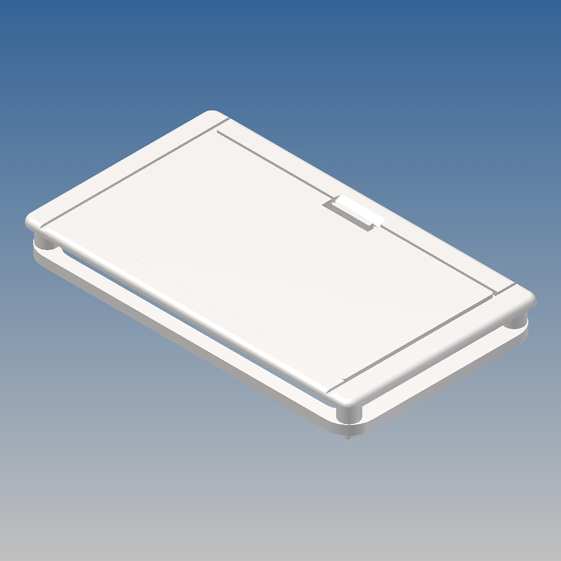

| Model | BH-1.7 |
| L (mm) | 68,5 |
| W (mm) | 39 |
| H (mm) | 8,5 |
| Color (Ral) |
9002 |
| Material | B 2460 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | 2 x AA / 1 x 9V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

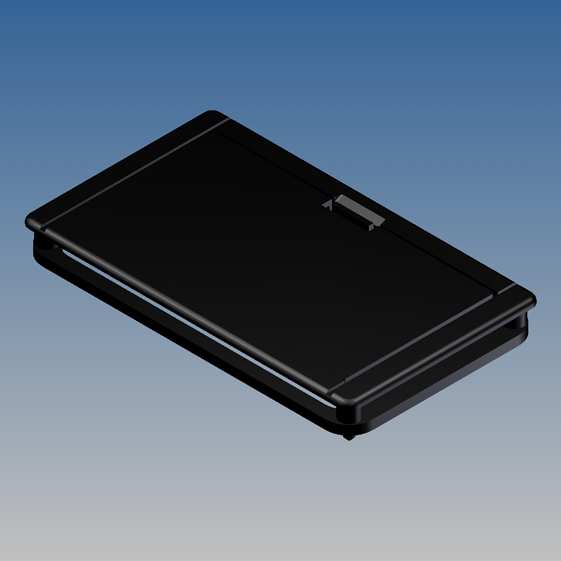

| Model | BH-1.9 |
| L (mm) | 68,5 |
| W (mm) | 39 |
| H (mm) | 8,5 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | 2 x AA / 1 x 9V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

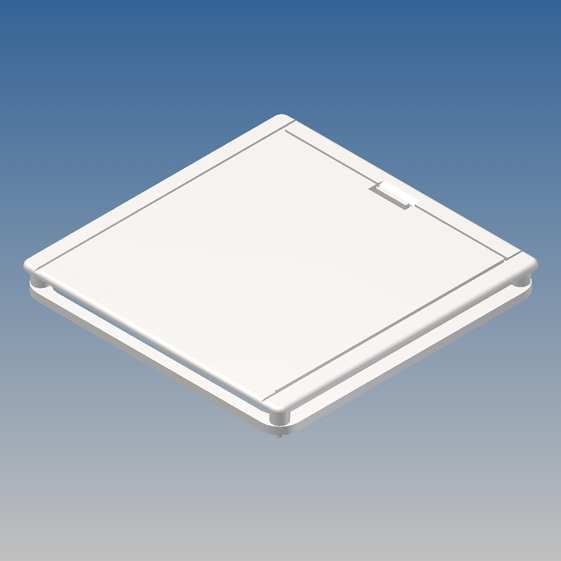

| Model | BH-2.7 |
| L (mm) | 68,5 |
| W (mm) | 69 |
| H (mm) | 8,5 |
| Color (Ral) |
9002 |
| Material | B 2460 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | 4 x AA / 2 x 9V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

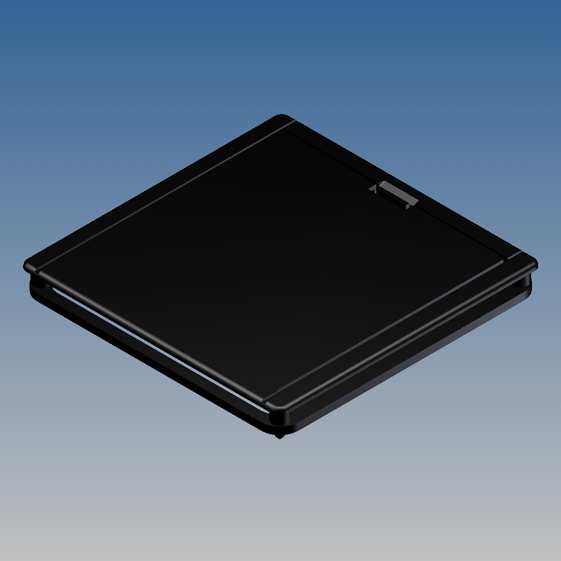

| Model | BH-2.9 |
| L (mm) | 68,5 |
| W (mm) | 69 |
| H (mm) | 8,5 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | 4 x AA / 2 x 9V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

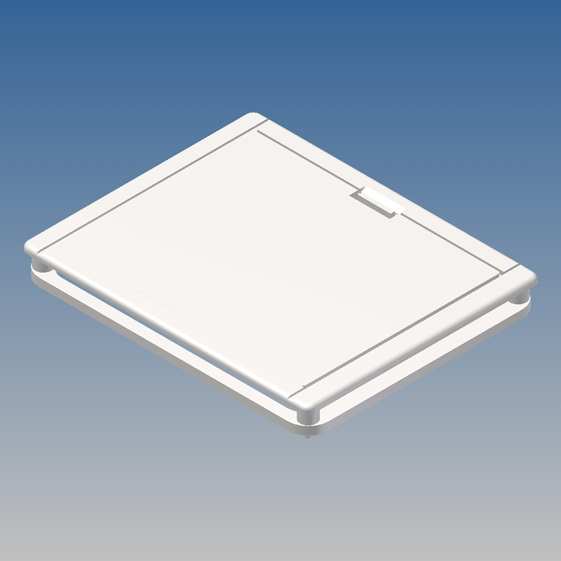

| Model | BH-3.7 |
| L (mm) | 68,5 |
| W (mm) | 55 |
| H (mm) | 8,5 |
| Color (Ral) |
9002 |
| Material | B 2460 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | 4 x AAA |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

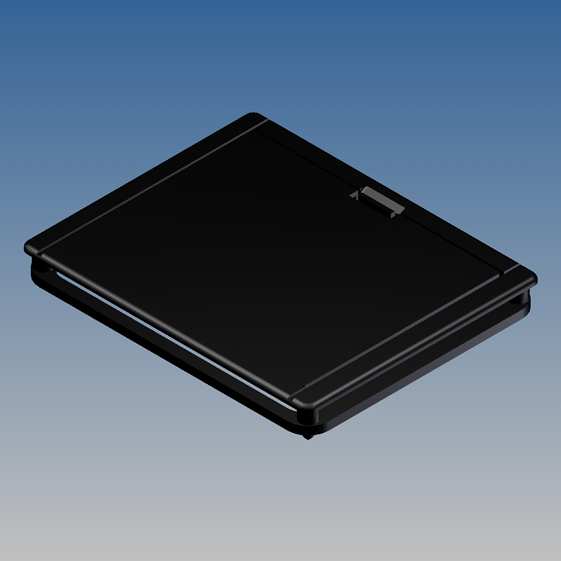

| Model | BH-3.9 |
| L (mm) | 68,5 |
| W (mm) | 55 |
| H (mm) | 8,5 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | 4 x AAA |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

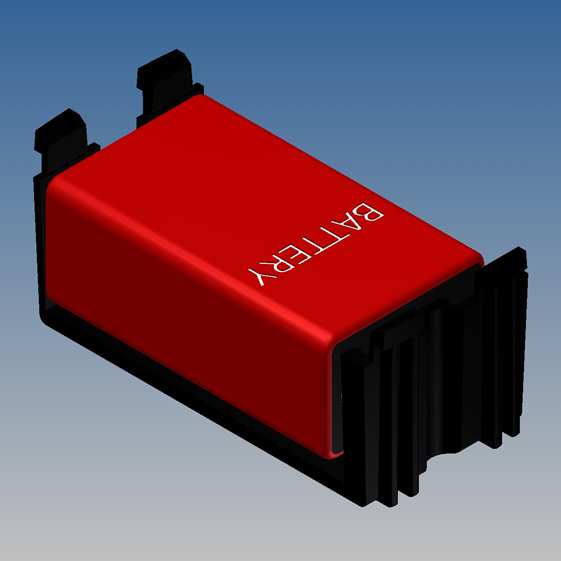

| Model | BT-1.9 |
| L (mm) | 55,7 |
| W (mm) | 25,8 |
| H (mm) | 24,5 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | 1 x 9V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

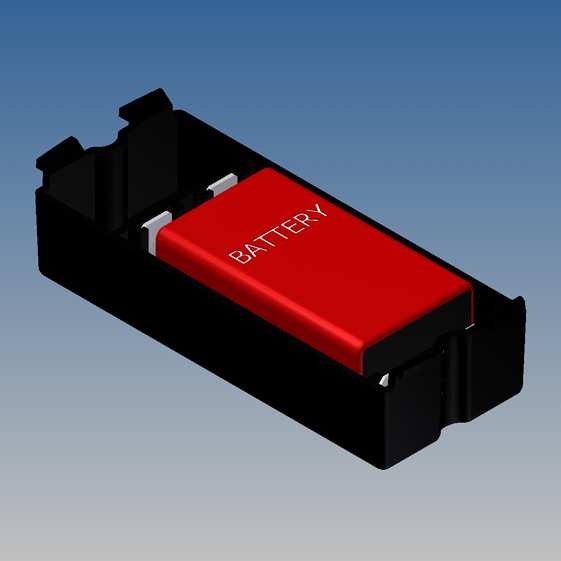

| Model | BT-2.9 |
| L (mm) | 81,4 |
| W (mm) | 31,9 |
| H (mm) | 20 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | 2 x AA / 1 x 9V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
BH-1.7 | 68,5 | 39 | 8,5 |
9002 |
B 2460 | - | - | - | 2 x AA / 1 x 9V |
PDF DWG |
View
|
|
|
|
BH-1.9 | 68,5 | 39 | 8,5 |
9004 |
P2H-AT | - | - | - | 2 x AA / 1 x 9V |
PDF DWG |
View
|
|
|
|
BH-2.7 | 68,5 | 69 | 8,5 |
9002 |
B 2460 | - | - | - | 4 x AA / 2 x 9V |
PDF DWG |
View
|
|
|
|
BH-2.9 | 68,5 | 69 | 8,5 |
9004 |
P2H-AT | - | - | - | 4 x AA / 2 x 9V |
PDF DWG |
View
|
|
|
|
BH-3.7 | 68,5 | 55 | 8,5 |
9002 |
B 2460 | - | - | - | 4 x AAA |
PDF DWG |
View
|
|
|
|
BH-3.9 | 68,5 | 55 | 8,5 |
9004 |
P2H-AT | - | - | - | 4 x AAA |
PDF DWG |
View
|
|
|
|
BT-1.9 | 55,7 | 25,8 | 24,5 |
9004 |
P2H-AT | - | - | - | 1 x 9V |
PDF DWG |
View
|
|
|
|
BT-2.9 | 81,4 | 31,9 | 20 |
9004 |
P2H-AT | - | - | - | 2 x AA / 1 x 9V |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
