Description

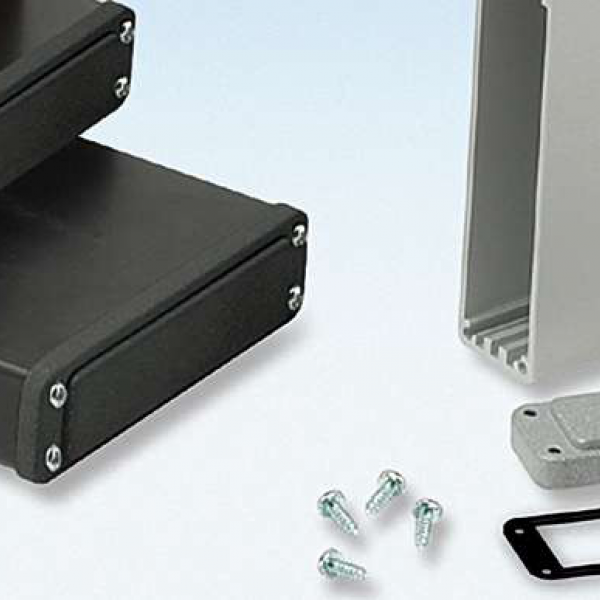

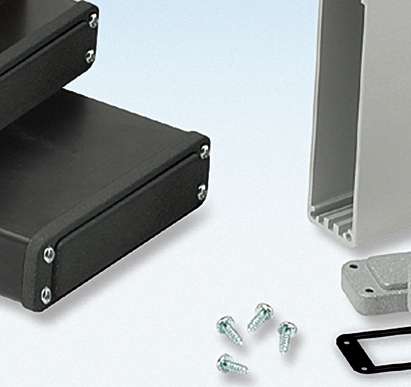

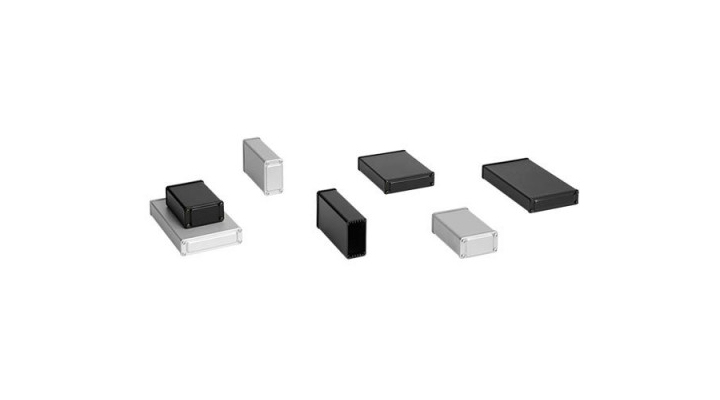

Compact extruded aluminium case with powder coating. Two aluminium front cover panels with two rubber sealing kits to protect against water and from dust. Internal slots for PCB’s. Closing by eight screws.
Details

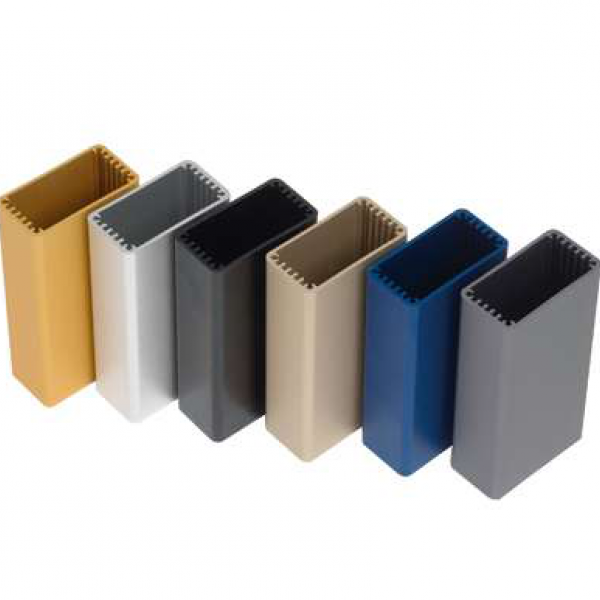

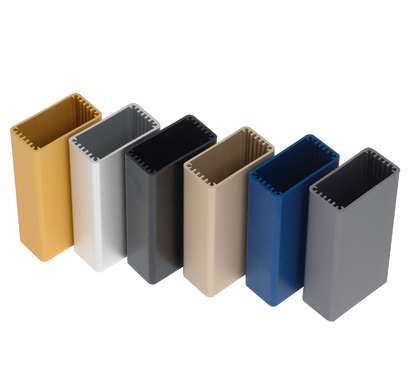

Alternative colours
ViewProducts
| |
|---|---|

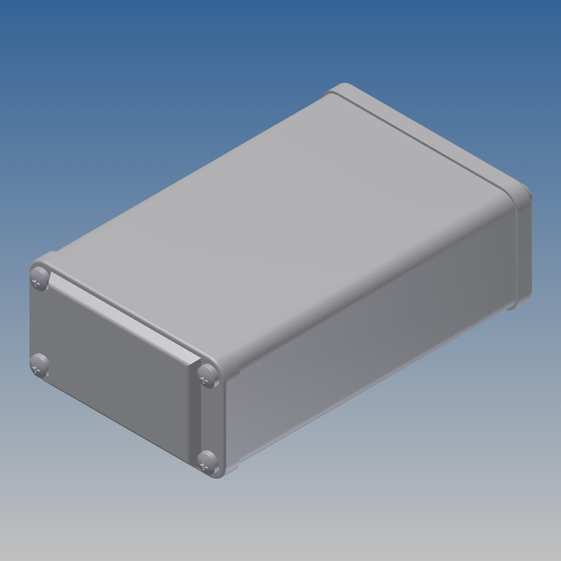

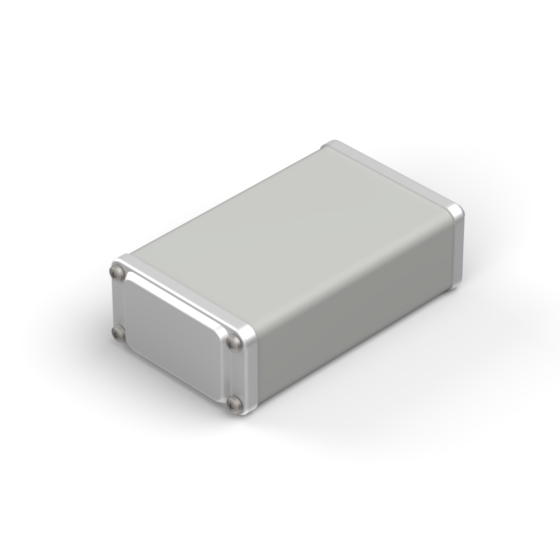

| Model | MTK465.1 |
| L (mm) | 68 |
| W (mm) | 43 |
| H (mm) | 23 |
| Color (Ral) |
9006 |
| Material | ALLOY 6060 |
| MAX PCB L (mm) | 65 |
| MAX PCB W (mm) | 39,4 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

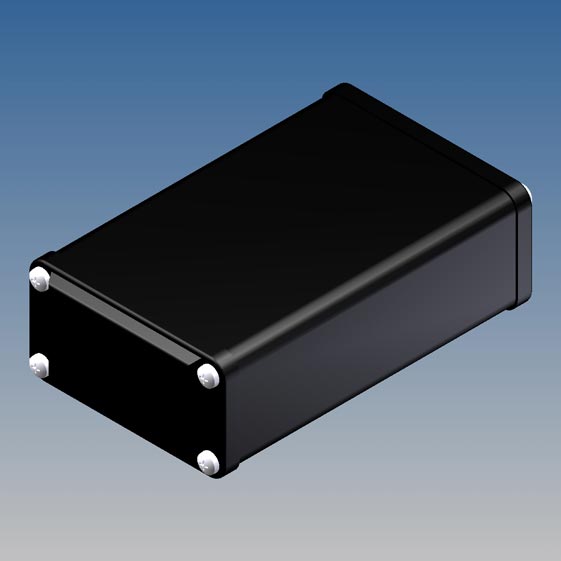

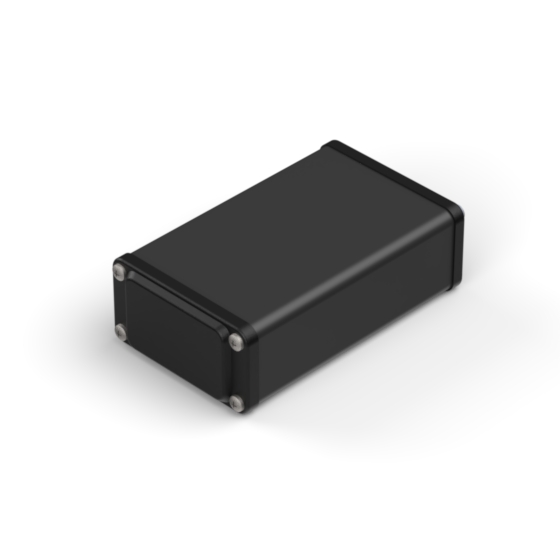

| Model | MTK465.9 |
| L (mm) | 68 |
| W (mm) | 43 |
| H (mm) | 23 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 |
| MAX PCB L (mm) | 65 |
| MAX PCB W (mm) | 39,4 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

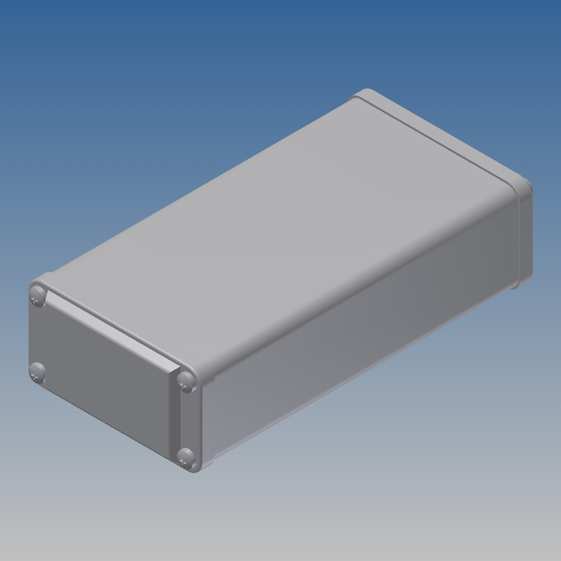

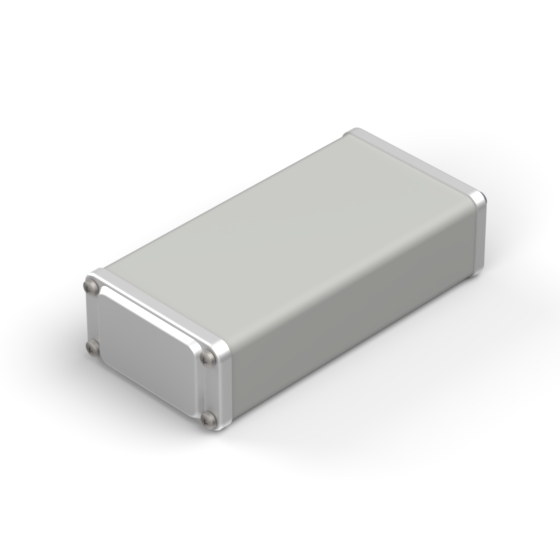

| Model | MTK480.1 |
| L (mm) | 83 |
| W (mm) | 43 |
| H (mm) | 23 |
| Color (Ral) |
9006 |
| Material | ALLOY 6060 |
| MAX PCB L (mm) | 80 |
| MAX PCB W (mm) | 39,4 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

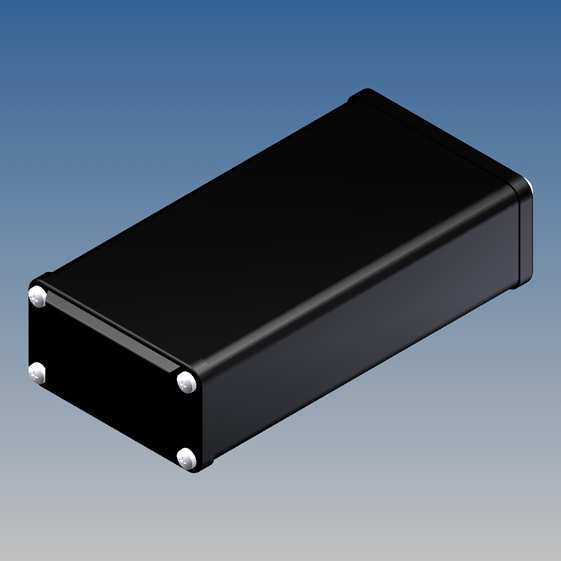

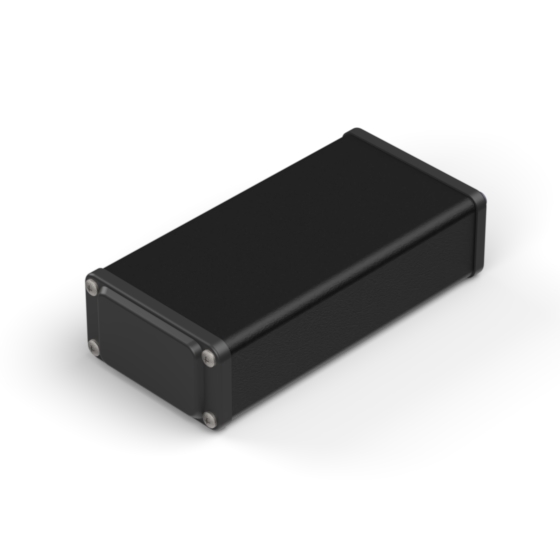

| Model | MTK480.9 |
| L (mm) | 83 |
| W (mm) | 43 |
| H (mm) | 23 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 |
| MAX PCB L (mm) | 80 |
| MAX PCB W (mm) | 39,4 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

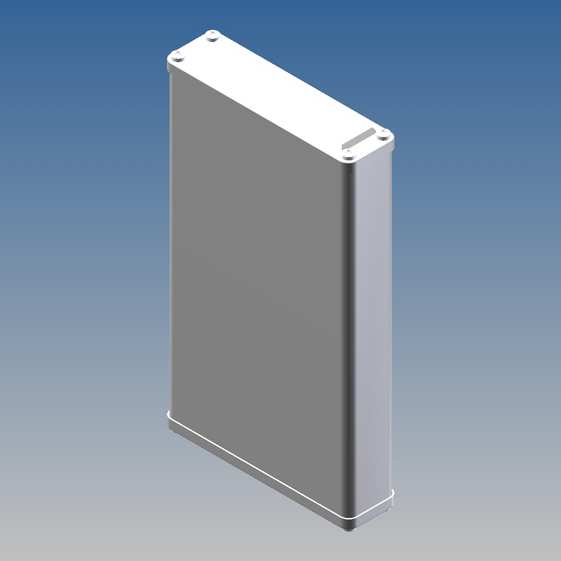

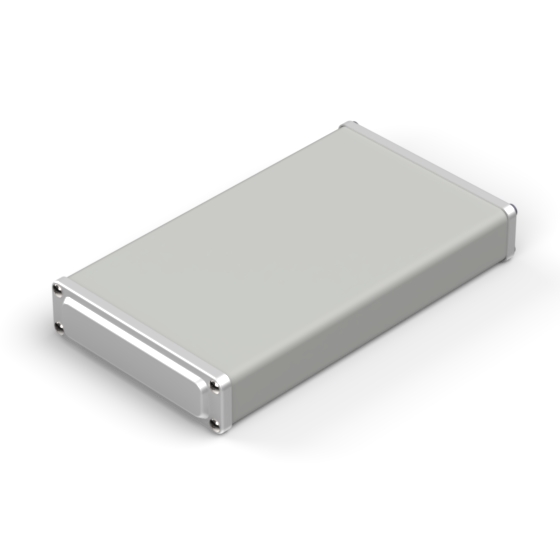

| Model | MTK6110.1 |
| L (mm) | 113 |
| W (mm) | 66 |
| H (mm) | 18 |
| Color (Ral) |
9006 |
| Material | ALLOY 6060 |
| MAX PCB L (mm) | 110 |
| MAX PCB W (mm) | 62,4 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

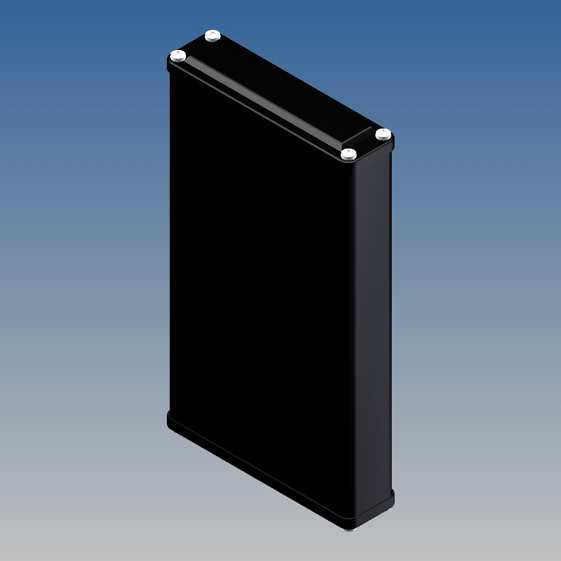

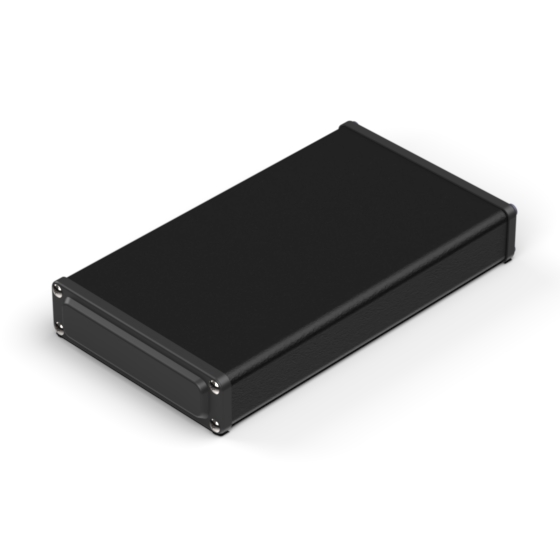

| Model | MTK6110.9 |
| L (mm) | 113 |
| W (mm) | 66 |
| H (mm) | 18 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 |
| MAX PCB L (mm) | 110 |
| MAX PCB W (mm) | 62,4 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

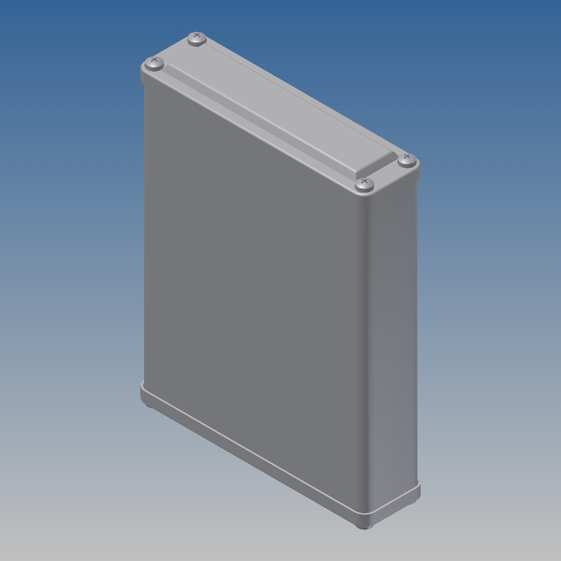

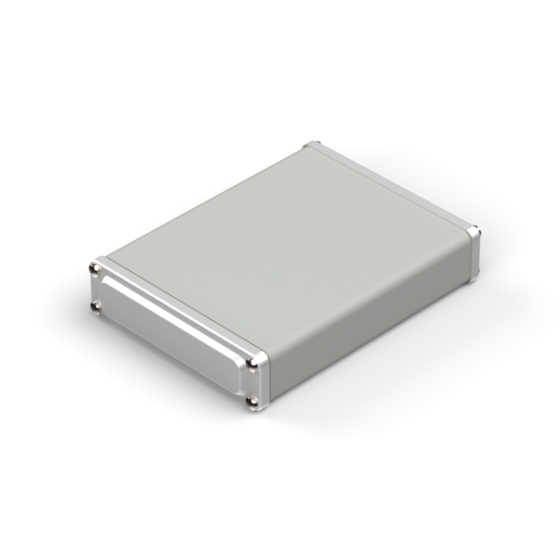

| Model | MTK680.1 |
| L (mm) | 83 |
| W (mm) | 66 |
| H (mm) | 18 |
| Color (Ral) |
9006 |
| Material | ALLOY 6060 |
| MAX PCB L (mm) | 80 |
| MAX PCB W (mm) | 62,4 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

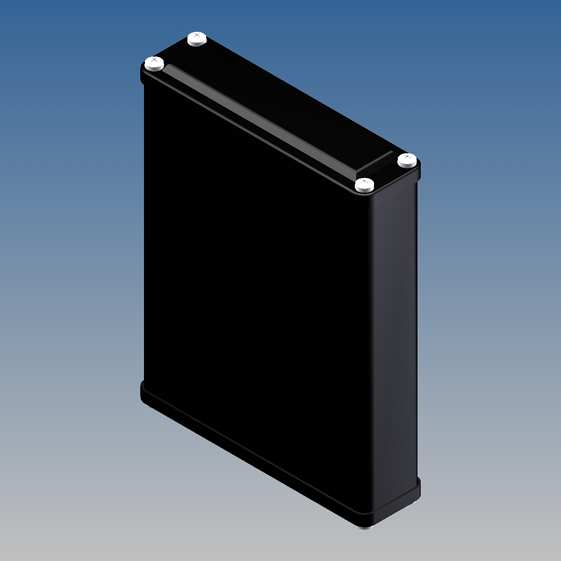

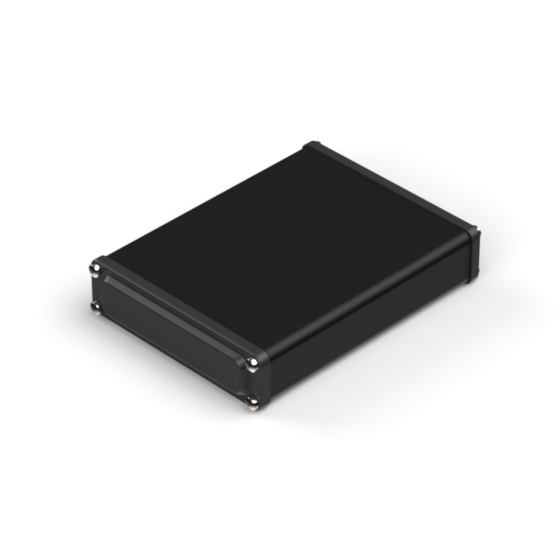

| Model | MTK680.9 |
| L (mm) | 83 |
| W (mm) | 66 |
| H (mm) | 18 |
| Color (Ral) |
9004 |
| Material | ALLOY 6060 |
| MAX PCB L (mm) | 80 |
| MAX PCB W (mm) | 62,4 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MTK465.1 | 68 | 43 | 23 |
9006 |
ALLOY 6060 | 65 | 39,4 | 8 | - |
PDF DWG |
View
|
|
|
|
MTK465.9 | 68 | 43 | 23 |
9004 |
ALLOY 6060 | 65 | 39,4 | 8 | - |
PDF DWG |
View
|
|
|
|
MTK480.1 | 83 | 43 | 23 |
9006 |
ALLOY 6060 | 80 | 39,4 | 8 | - |
PDF DWG |
View
|
|
|
|
MTK480.9 | 83 | 43 | 23 |
9004 |
ALLOY 6060 | 80 | 39,4 | 8 | - |
PDF DWG |
View
|
|
|
|
MTK6110.1 | 113 | 66 | 18 |
9006 |
ALLOY 6060 | 110 | 62,4 | 8 | - |
PDF DWG |
View
|
|
|
|
MTK6110.9 | 113 | 66 | 18 |
9004 |
ALLOY 6060 | 110 | 62,4 | 8 | - |
PDF DWG |
View
|
|
|
|
MTK680.1 | 83 | 66 | 18 |
9006 |
ALLOY 6060 | 80 | 62,4 | 8 | - |
PDF DWG |
View
|
|
|
|
MTK680.9 | 83 | 66 | 18 |
9004 |
ALLOY 6060 | 80 | 62,4 | 8 | - |
PDF DWG |
View
|
