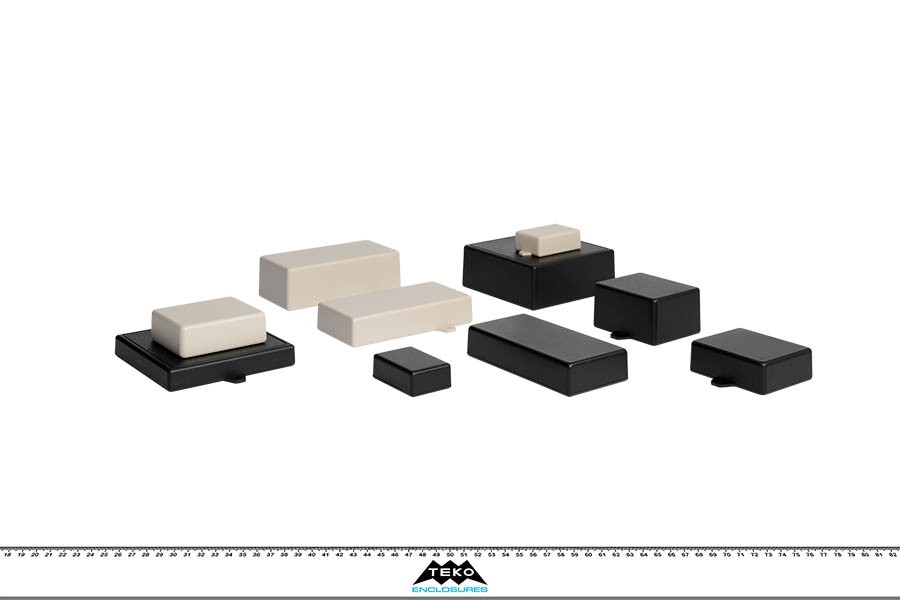

SMART

Description

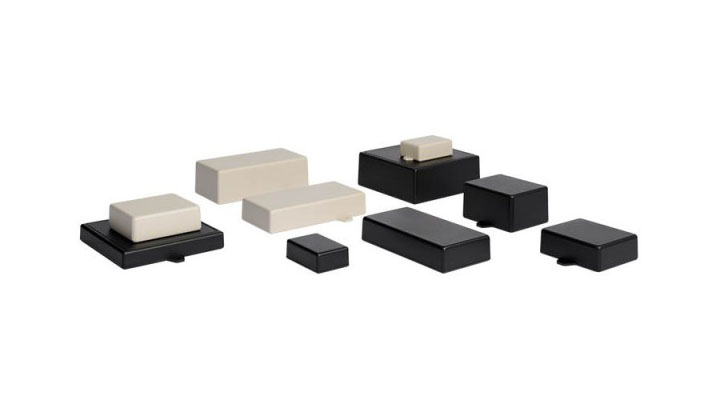

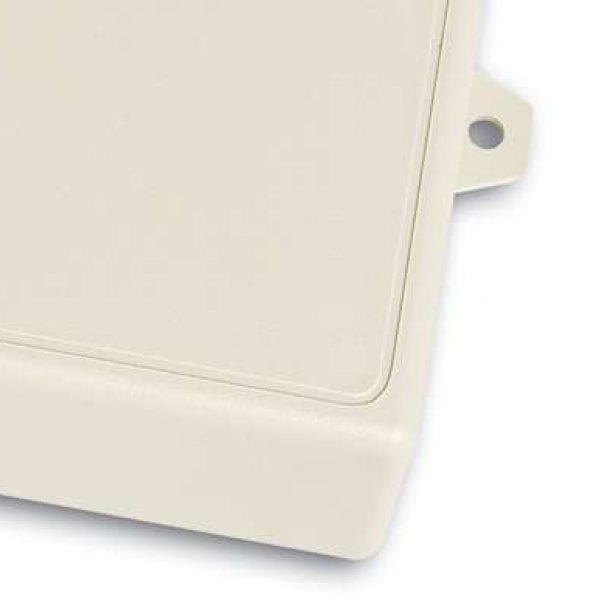

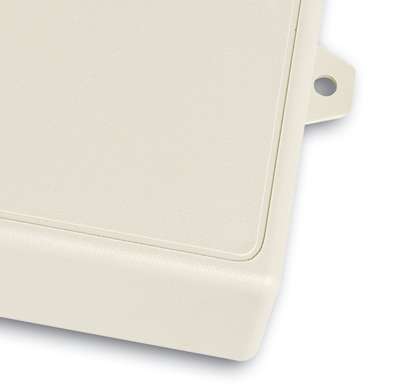

ABS enclosures with rounded corners. Easy assembly. Matt surfaces finish. The models “-E” have mounting ears. Closing by two and four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

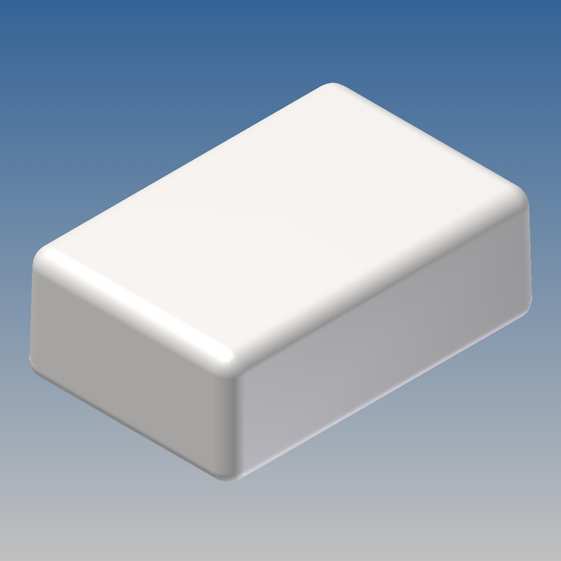

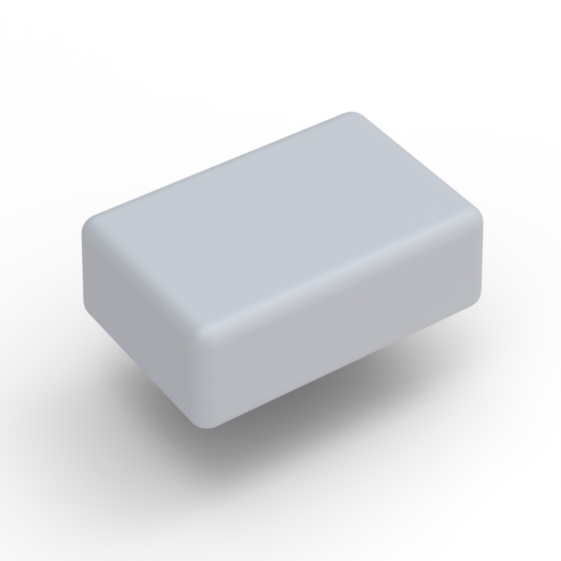

SR01.7 57 38 20 9002
 TERLURAN GP-22 50 31 2 - PDF
DWG
View

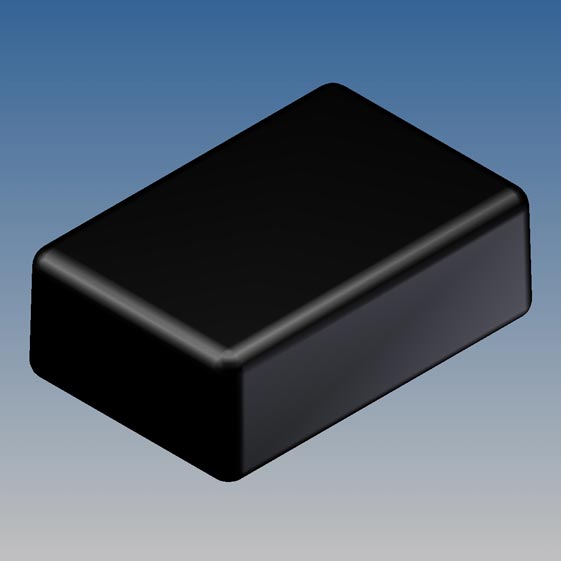

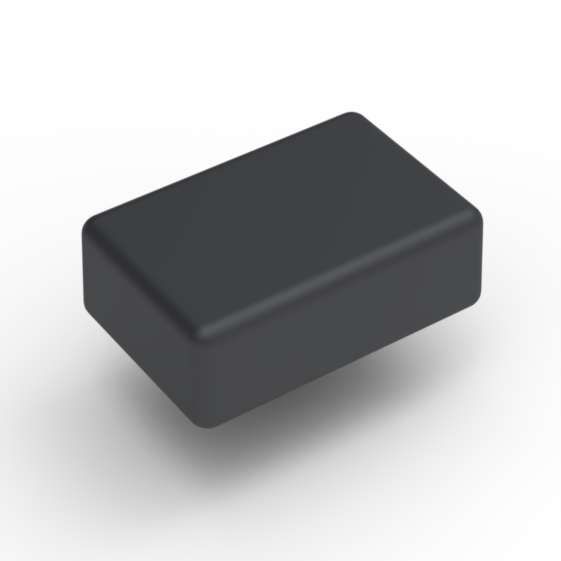

SR01.9 57 38 20 9004
 TERLURAN GP-22 50 31 2 - PDF
DWG
View

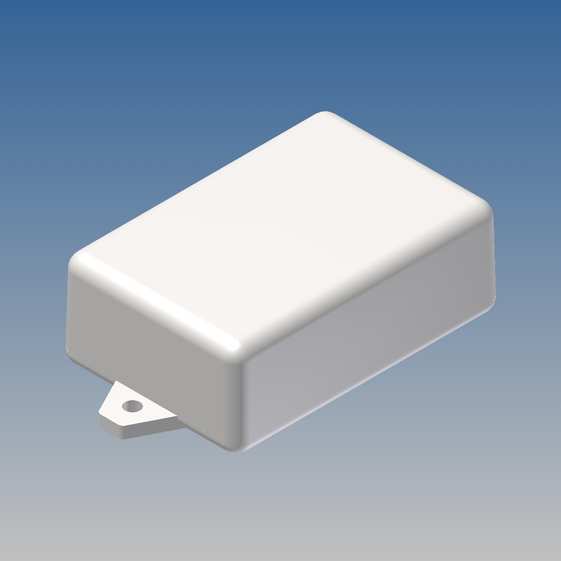

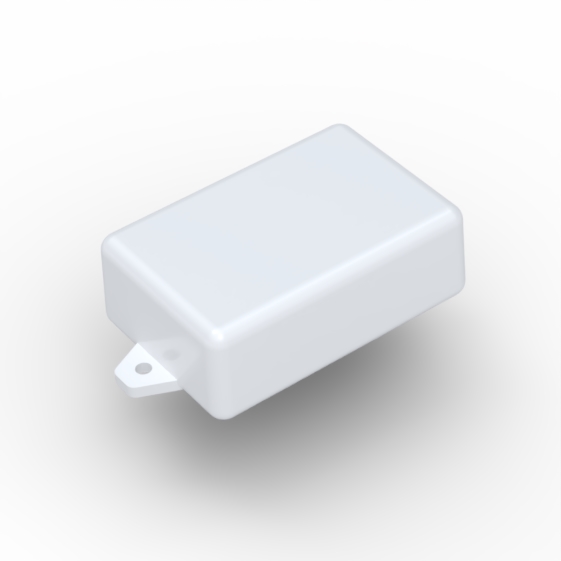

SR01-E.7 57 38 20 9002
 TERLURAN GP-22 50 31 2 - PDF
DWG
View

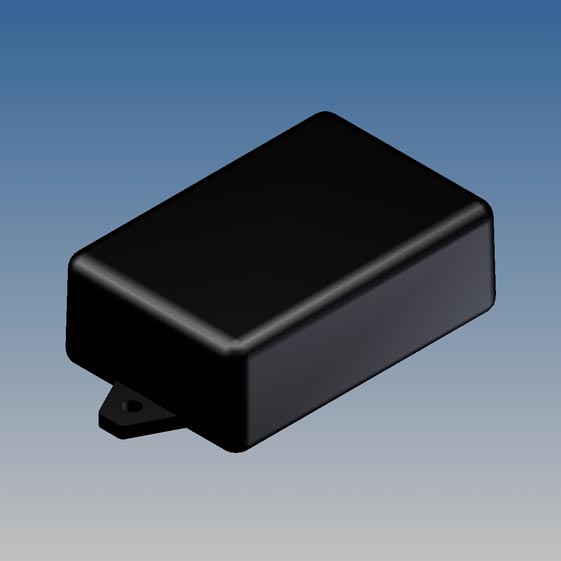

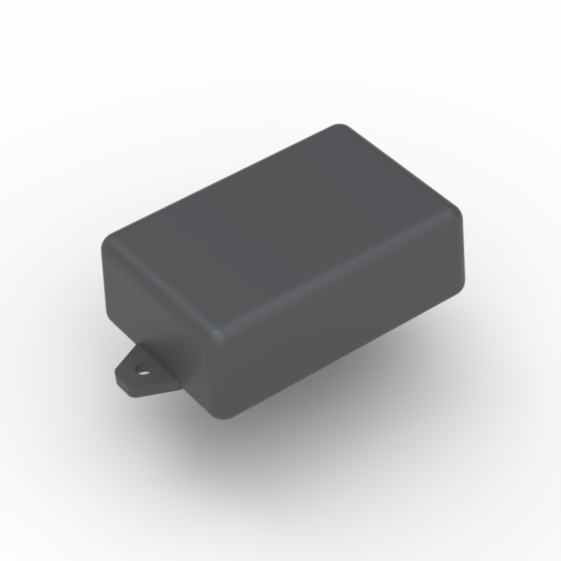

SR01-E.9 57 38 20 9004
 TERLURAN GP-22 50 31 2 - PDF
DWG
View

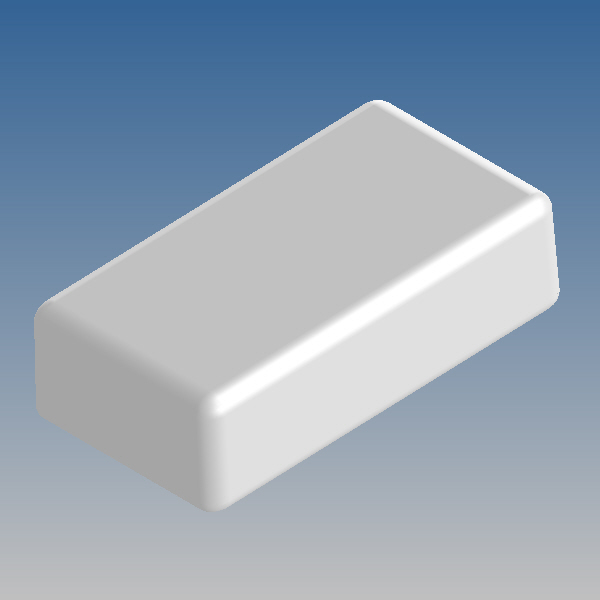

SR02.7 71,5 38,3 22,9 9002
 TERLURAN GP-22 64,5 31 2   PDF
DWG
View

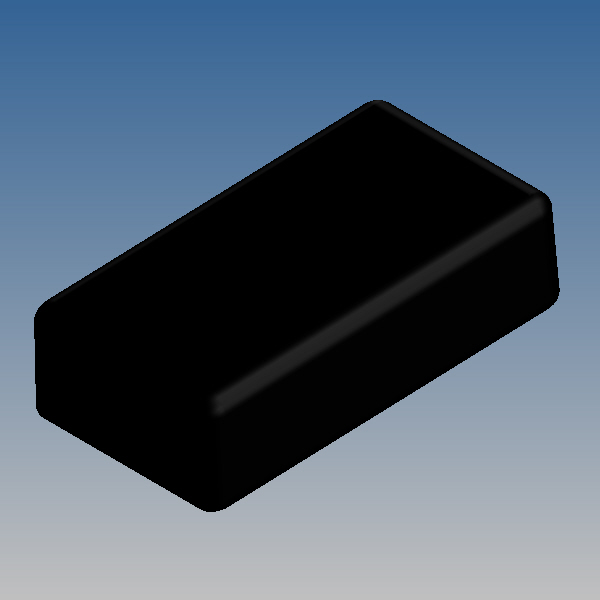

SR02.9 71,5 38,3 22,9 9004
 TERLURAN GP-22 64,5 31 2   PDF
DWG
View

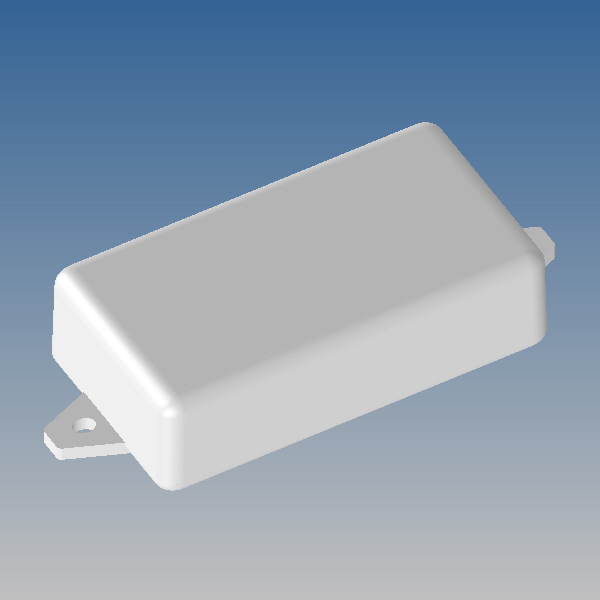

SR02-E.7 71,5 38,3 22,9 9002
 TERLURAN GP-22 64,5 31 2   PDF
DWG
View

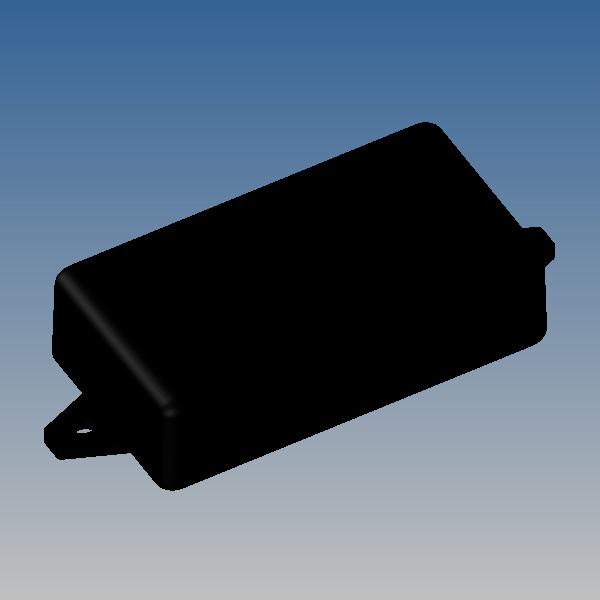

SR02-E.9 71,5 38,3 22,9 9004
 TERLURAN GP-22 64,5 31 2   PDF
DWG
View

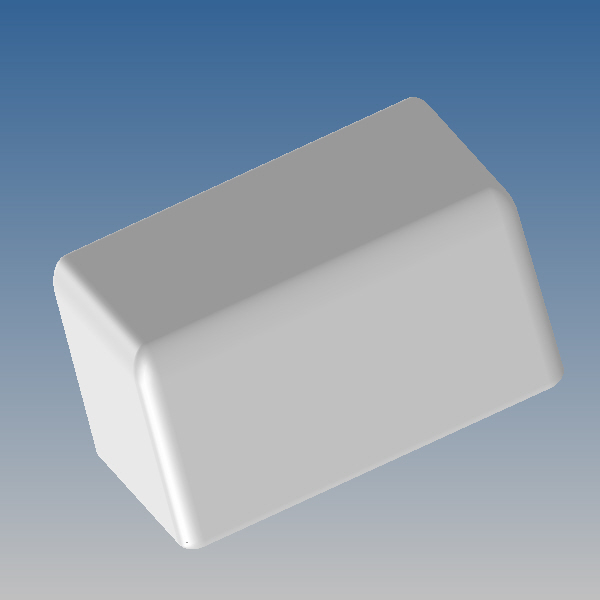

SR03 - OUT OF STOCK.7 71,5 38,3 40,9 9002
 TERLURAN GP-22 64,5 31 2   PDF
DWG
View

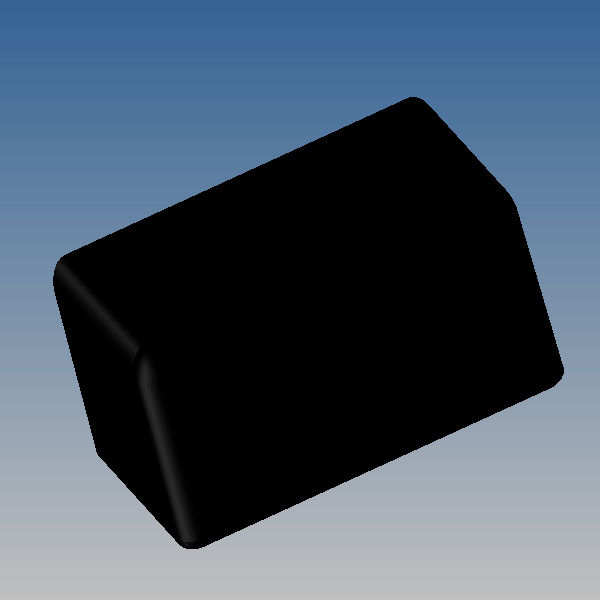

SR03 - OUT OF STOCK.9 71,5 38,3 40,9 9004
 TERLURAN GP-22 64,5 31 2   PDF
DWG
View

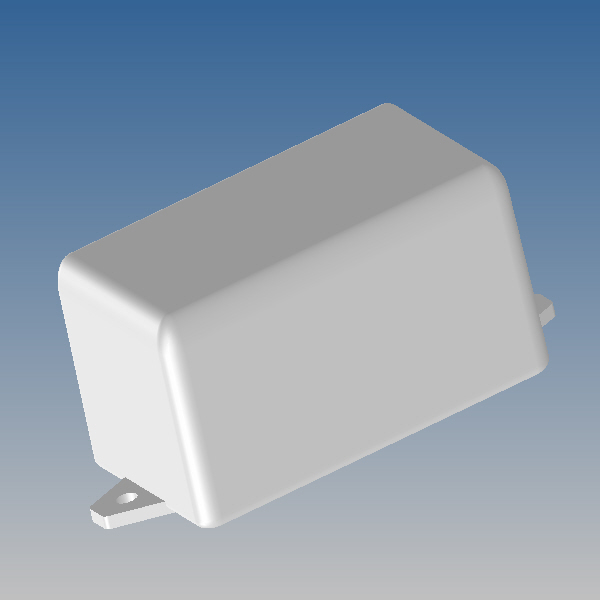

SR03-E - OUT OF STOCK.7 71,5 38,3 40,9 9002
 TERLURAN GP-22 64,5 31 2   PDF
DWG
View

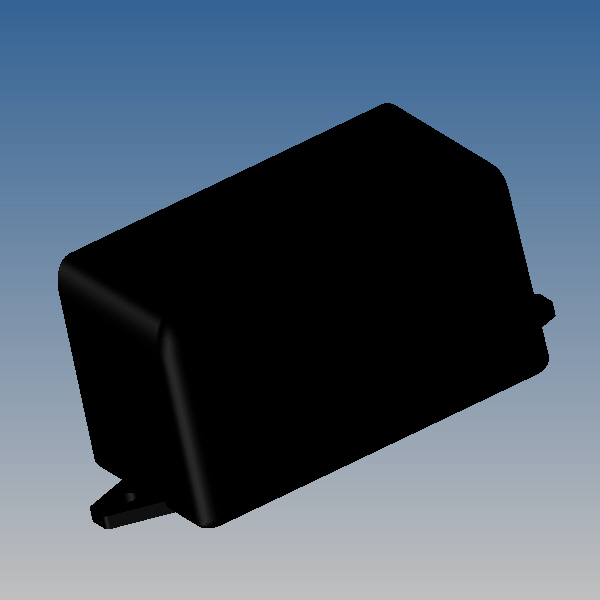

SR03-E - OUT OF STOCK.9 71,5 38,3 40,9 9004
 TERLURAN GP-22 64,5 31 2   PDF
DWG
View

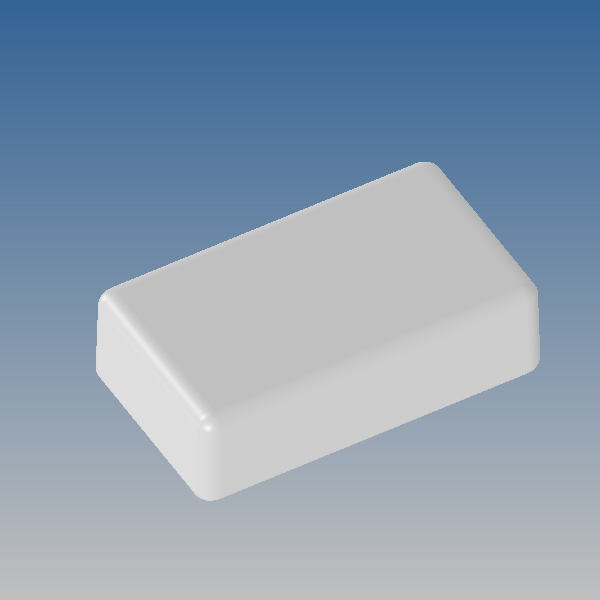

SR04.7 88,9 50,8 25,5 9002
 TERLURAN GP-22 82 44 4   PDF
DWG
View

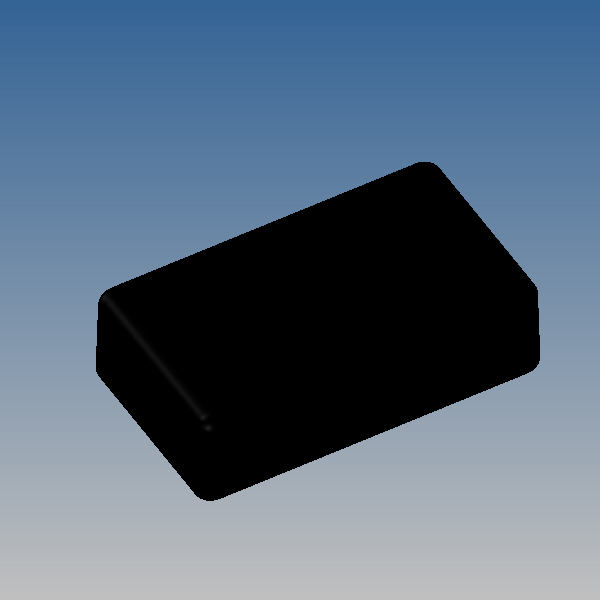

SR04.9 88,9 50,8 25,5 9004
 TERLURAN GP-22 82 44 4   PDF
DWG
View

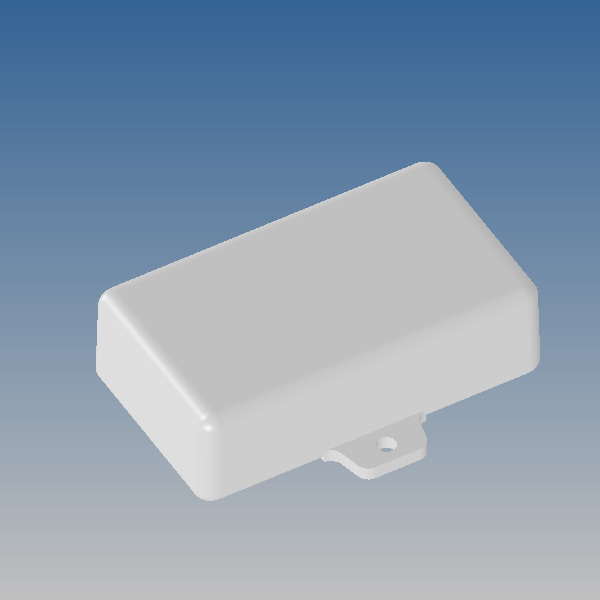

SR04-E.7 88,9 50,8 25,5 9002
 TERLURAN GP-22 82 44 4   PDF
DWG
View
SR04-E.9 88,9 50,8 25,5 9004
 TERLURAN GP-22 82 44 4   PDF
DWG
View

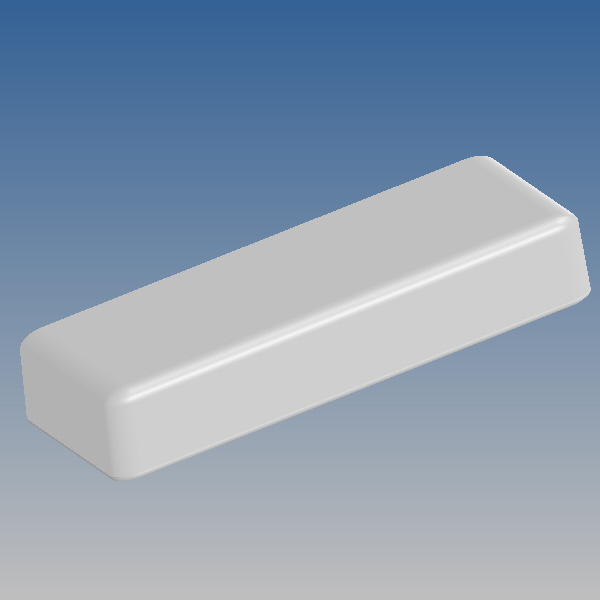

SR06 - OUT OF STOCK.7 153 52 28 9002
 TERLURAN GP-22 144 43 4   PDF
DWG
View

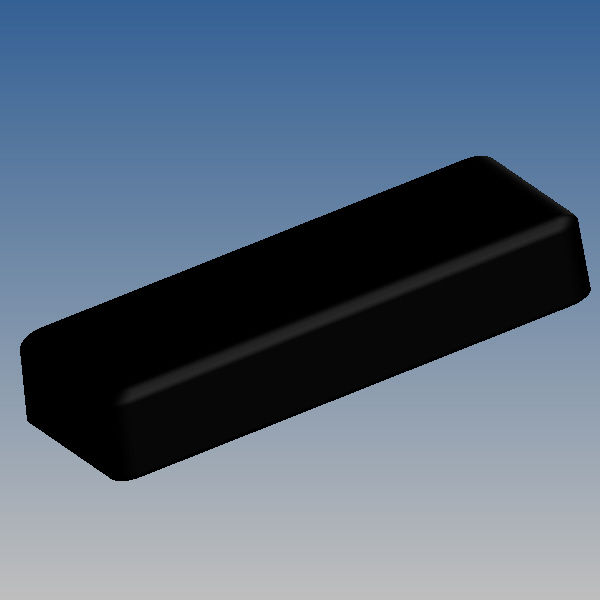

SR06 - OUT OF STOCK.9 153 52 28 9004
 TERLURAN GP-22 144 43 4   PDF
DWG
View

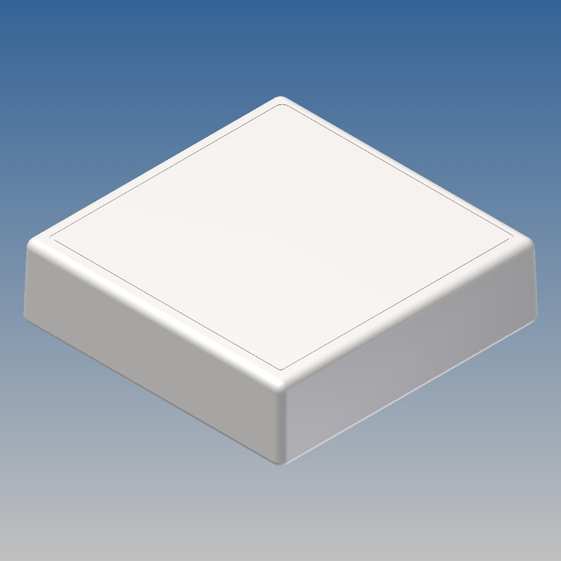

SR120 - OUT OF STOCK.7 111,1 111,1 31 9002
 TERLURAN GP-22 103,5 103,5 4 - PDF
DWG
View

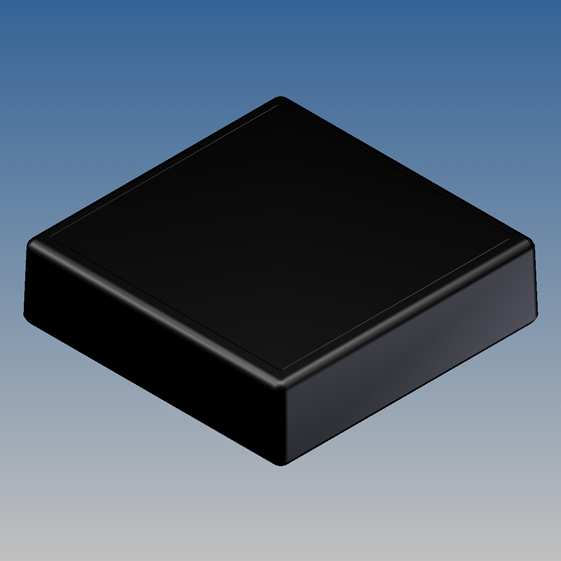

SR120 - OUT OF STOCK.9 111,1 111,1 31 9004
 TERLURAN GP-22 103,5 103,5 4 - PDF
DWG
View

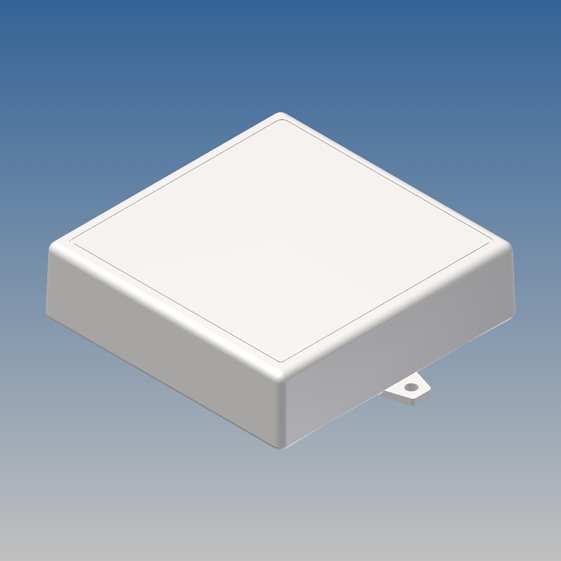

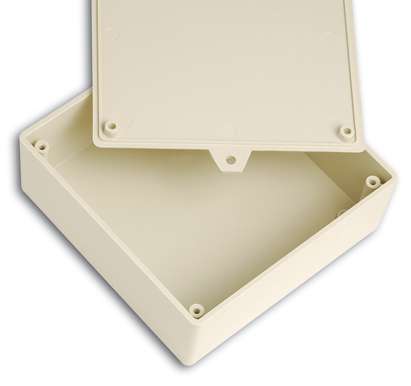

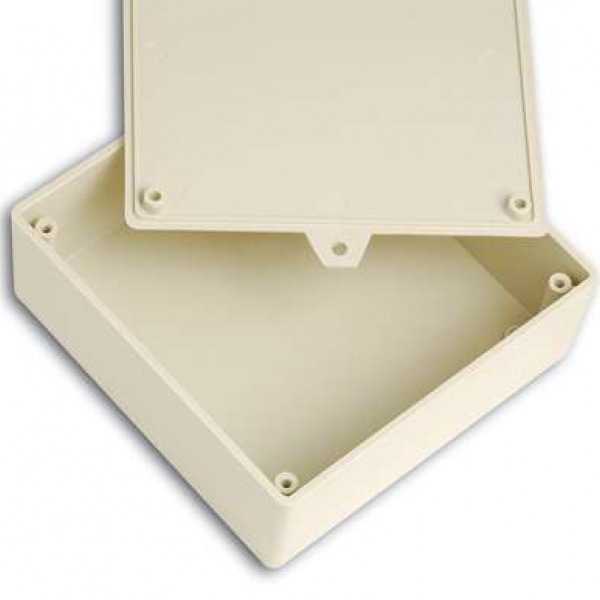

SR120-E - OUT OF STOCK.7 111,1 111,1 31 9002
 TERLURAN GP-22 103,5 103,5 4 - PDF
DWG
View

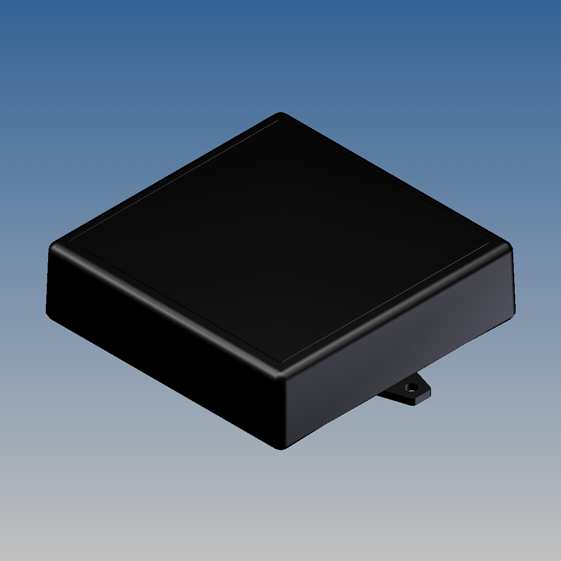

SR120-E - OUT OF STOCK.9 111,1 111,1 31 9004
 TERLURAN GP-22 103,5 103,5 4 - PDF
DWG
View

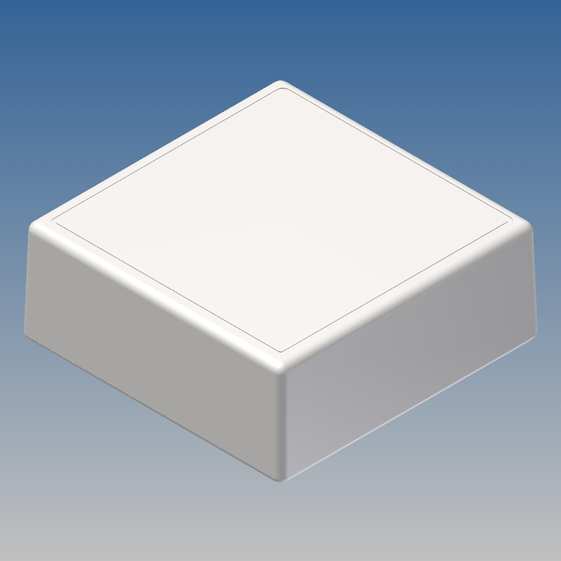

SR170 - OUT OF STOCK.7 111,1 111,1 43,4 9002
 TERLURAN GP-22 103,5 103,5 4 - PDF
DWG
View
SR170 - OUT OF STOCK.9 111,1 111,1 43,4 9004
 TERLURAN GP-22 103,5 103,5 4 - PDF
DWG
View

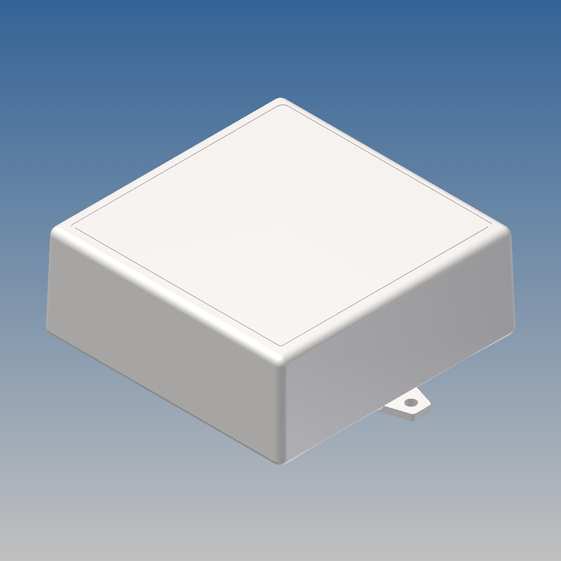

SR170-E - OUT OF STOCK.7 111,1 111,1 43,4 9002
 TERLURAN GP-22 103,5 103,5 4 - PDF
DWG
View

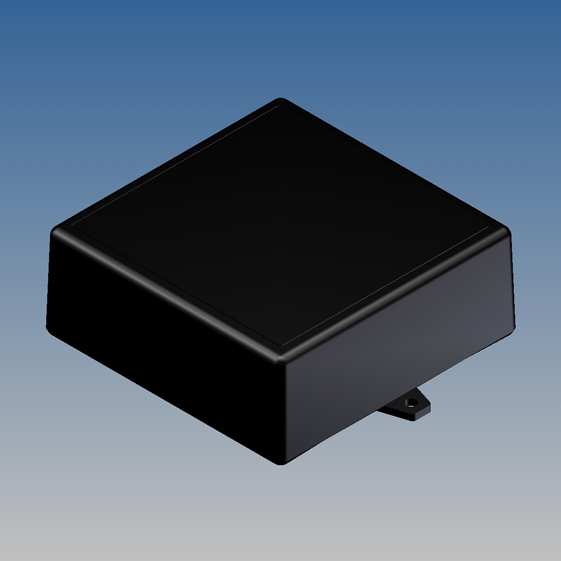

SR170-E - OUT OF STOCK.9 111,1 111,1 43,4 9004
 TERLURAN GP-22 103,5 103,5 4 - PDF
DWG
View

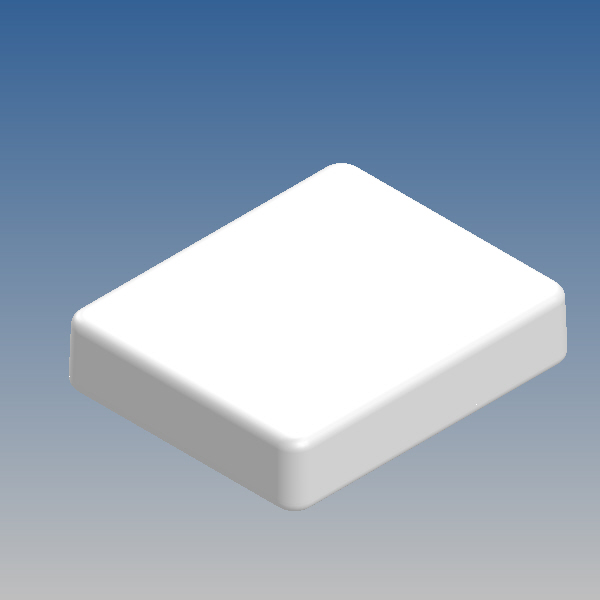

SR21 - OUT OF STOCK.7 76,2 65,5 16,6 9002
 TERLURAN GP-22 70,6 57.9 4   PDF
DWG
View

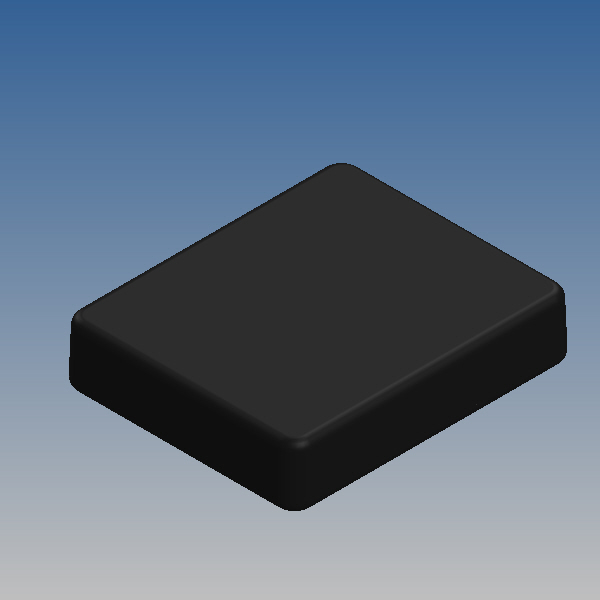

SR21 - OUT OF STOCK.9 76,2 65,5 16,6 9004
 TERLURAN GP-22 70,6 57.9 4   PDF
DWG
View

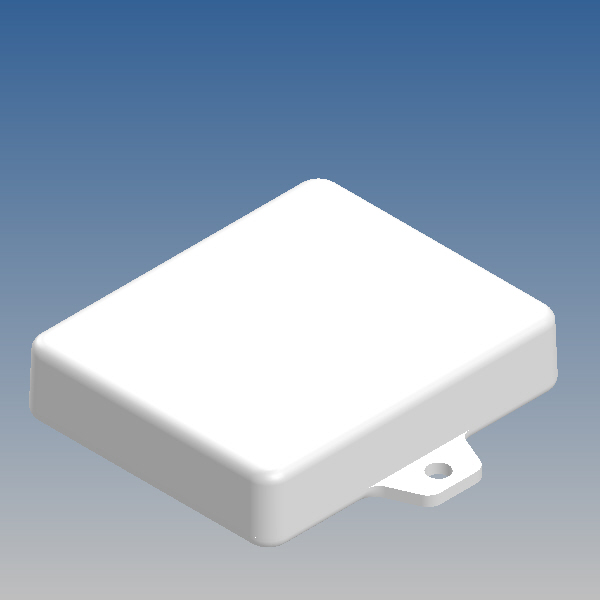

SR21-E.7 76,2 63,5 16,6 9002
 TERLURAN GP-22 70,6 57.9 4   PDF
DWG
View

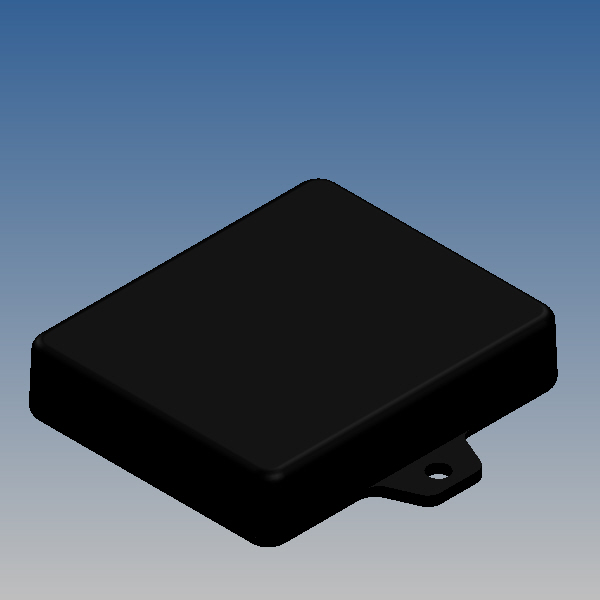

SR21-E.9 76,2 63,5 16,6 9004
 TERLURAN GP-22 70,6 57.9 4   PDF
DWG
View

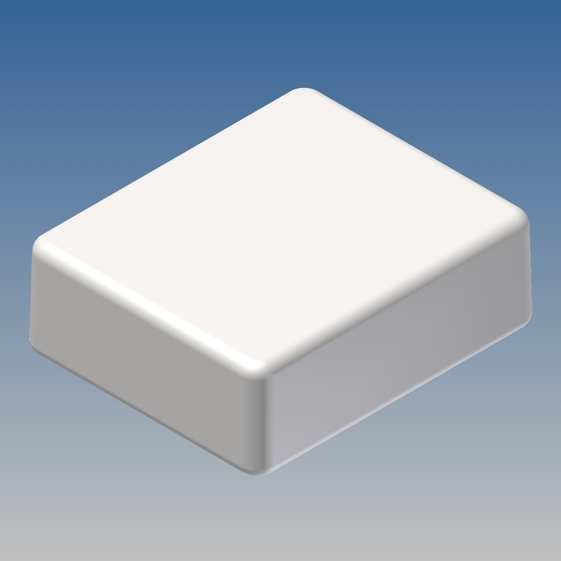

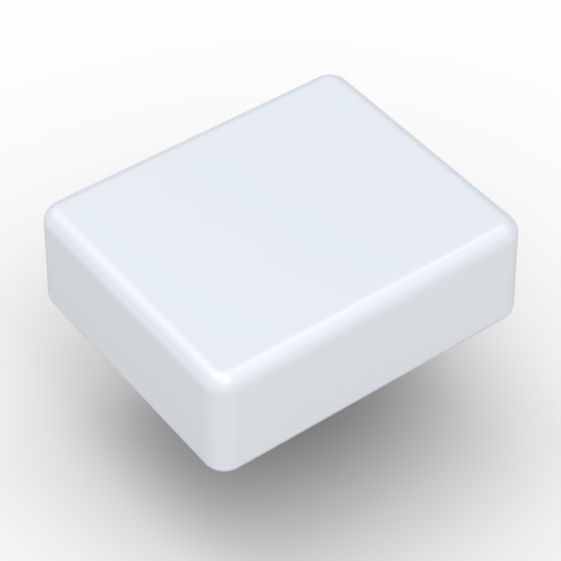

SR22.7 76 63,5 26 9002
 TERLURAN GP-22 67,6 55,1 4 - PDF
DWG
View

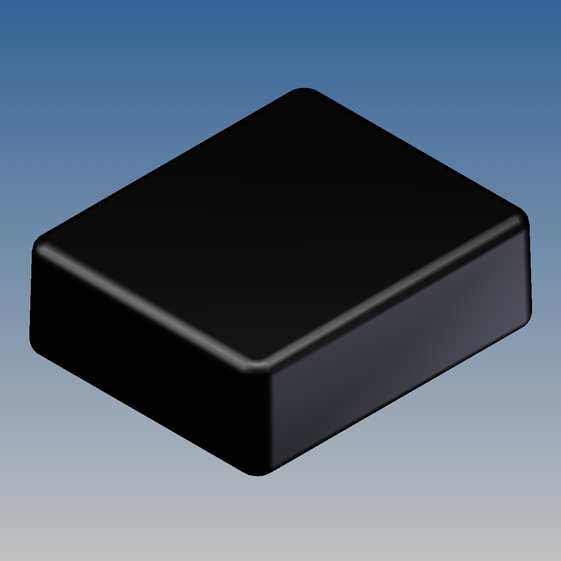

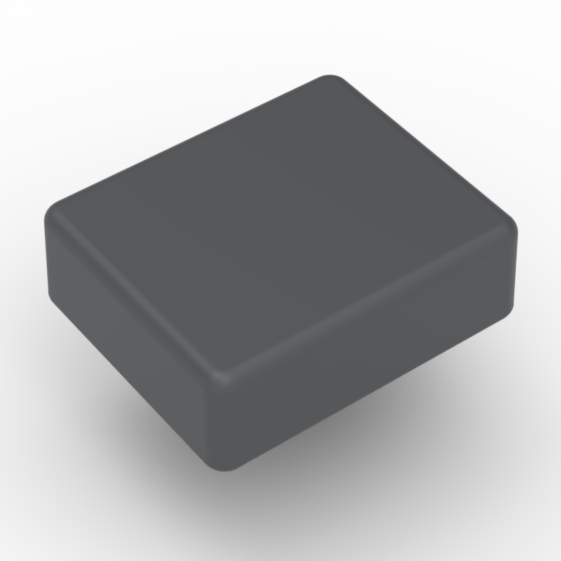

SR22.9 76 63,5 26 9004
 TERLURAN GP-22 67,6 55,1 4 - PDF
DWG
View

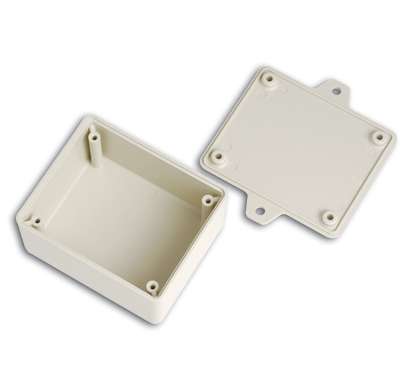

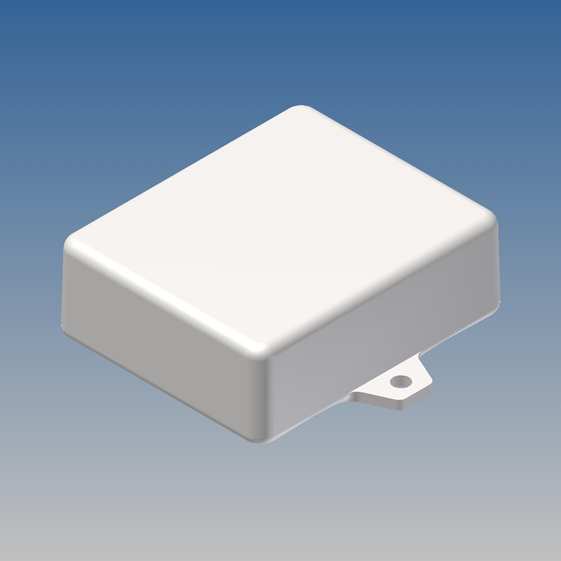

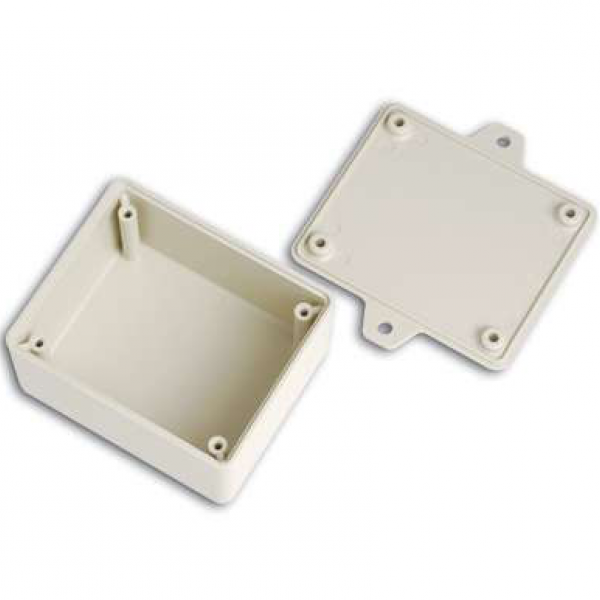

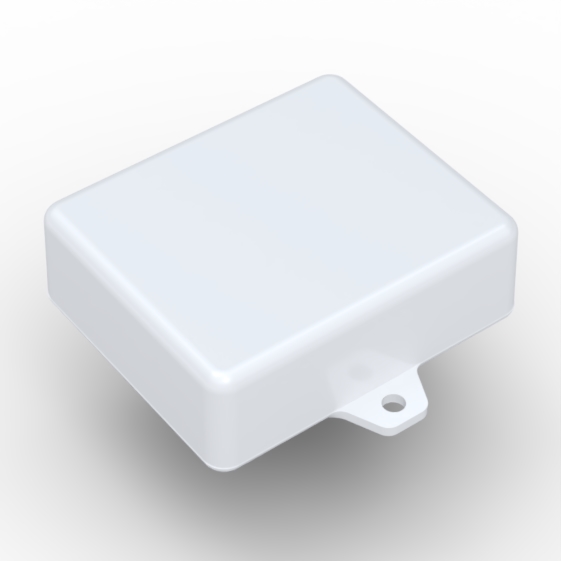

SR22-E.7 76 63,5 26 9002
 TERLURAN GP-22 67,6 55,1 4 - PDF
DWG
View

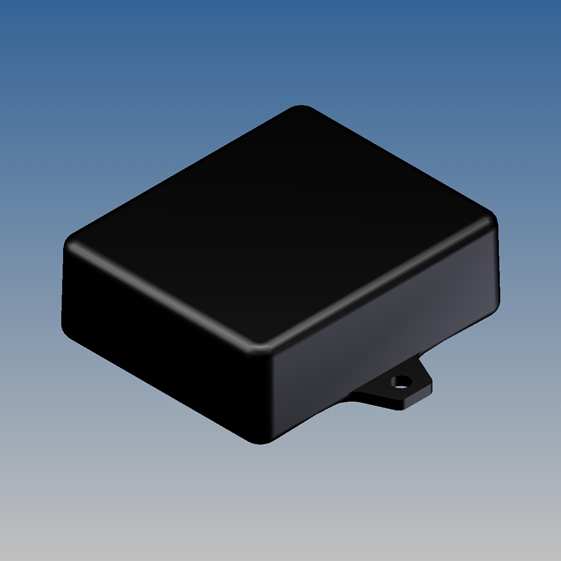

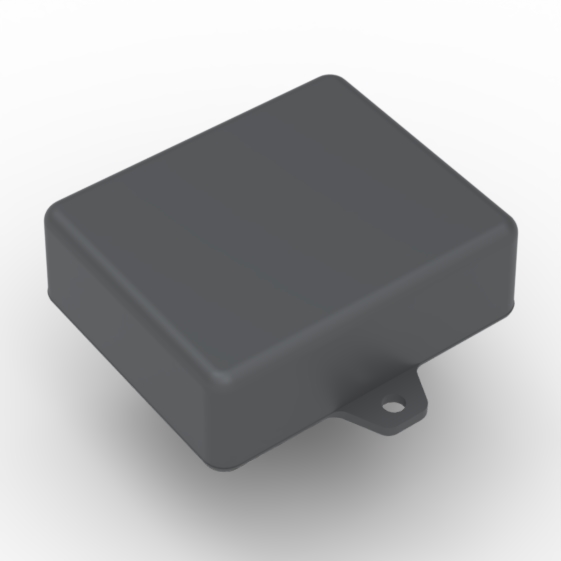

SR22-E.9 76 63,5 26 9004
 TERLURAN GP-22 67,6 55,1 4 - PDF
DWG
View

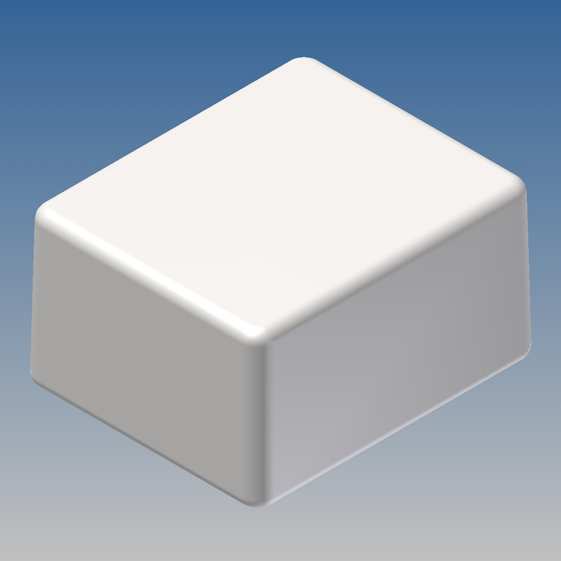

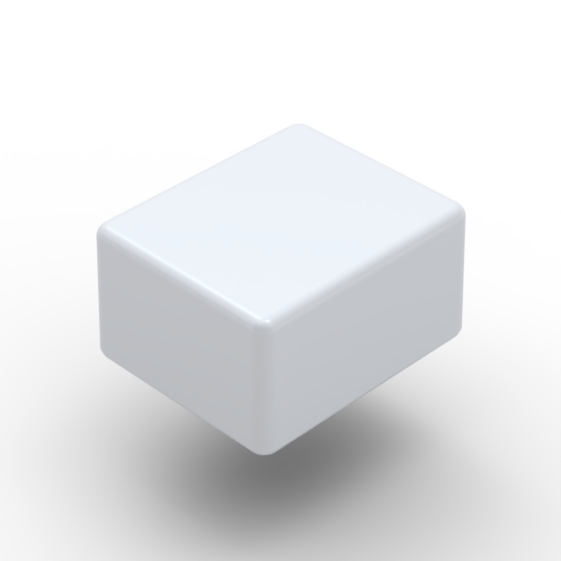

SR23.7 76 63,5 41 9002
 TERLURAN GP-22 67,6 55,1 4 - PDF
DWG
View

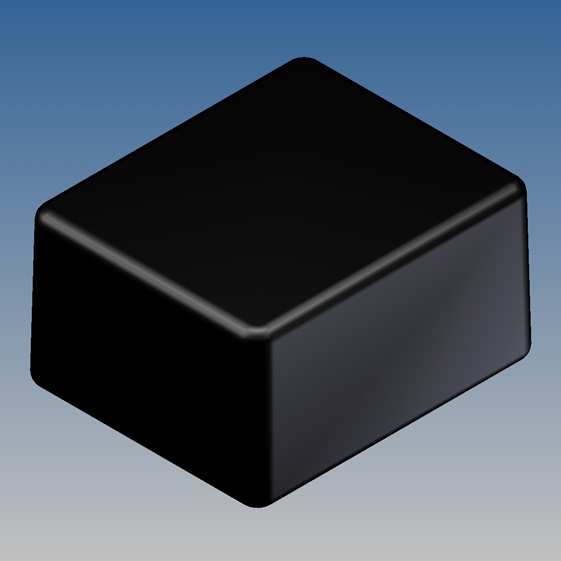

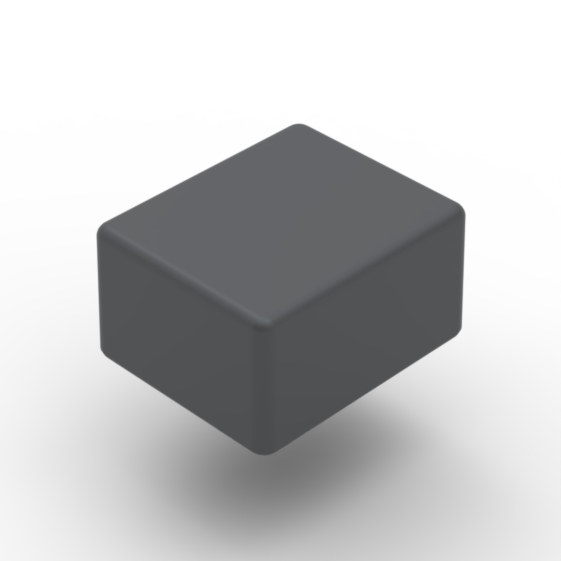

SR23.9 76 63,5 41 9004
 TERLURAN GP-22 67,6 55,1 4 - PDF
DWG
View

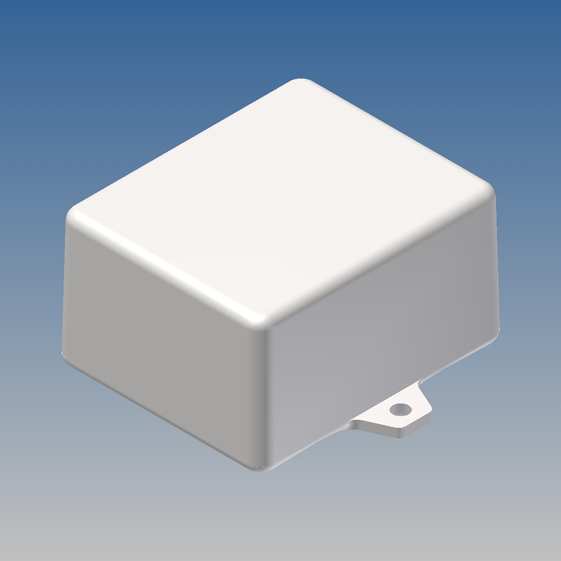

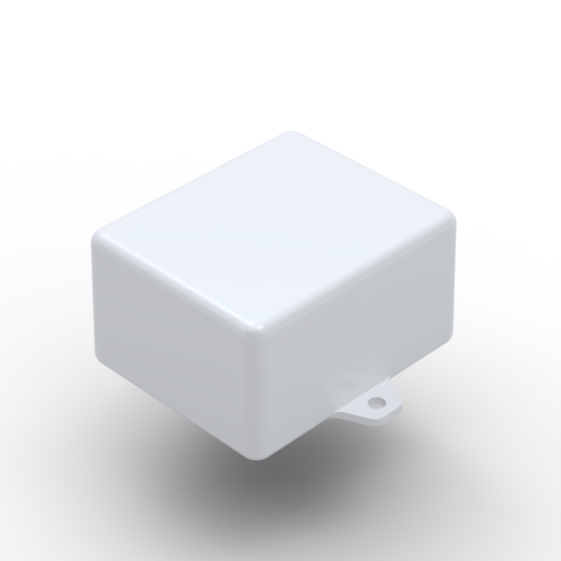

SR23-E.7 76 63,5 41 9002
 TERLURAN GP-22 67,6 55,1 4 - PDF
DWG
View

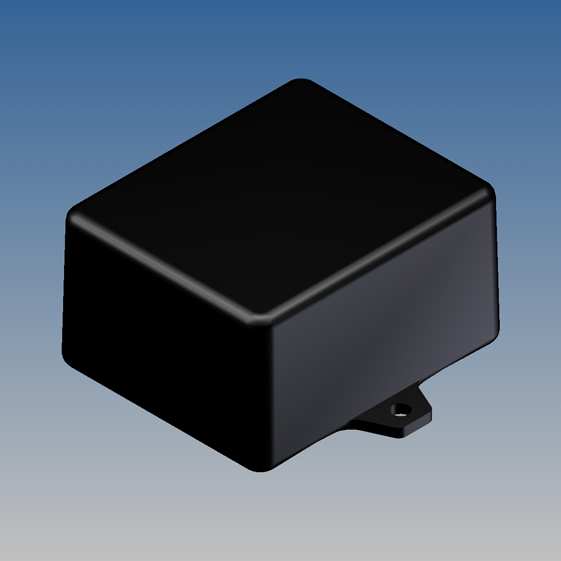

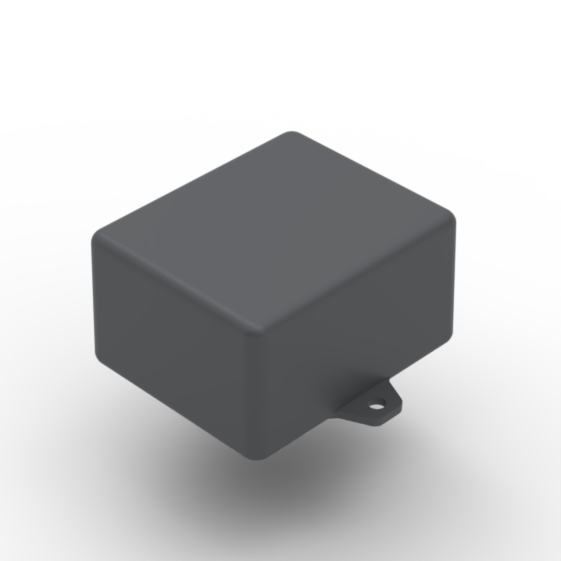

SR23-E.9 76 63,5 41 9004
 TERLURAN GP-22 67,6 55,1 4 - PDF
DWG
View
SR24-DB.7 76 63,5 38,7 9002
 TERLURAN GP-22 67,6 55,1 4   PDF
DWG
View

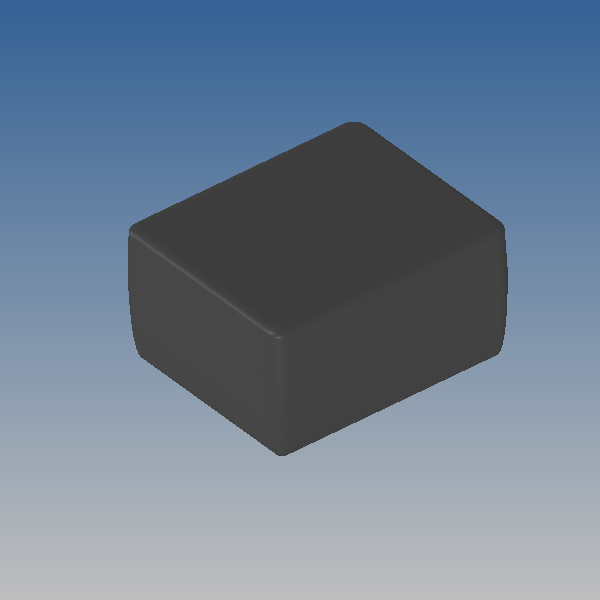

SR24-DB.9 76 63,5 38,7 9004
 TERLURAN GP-22 67,6 55,1 4   PDF
DWG
View

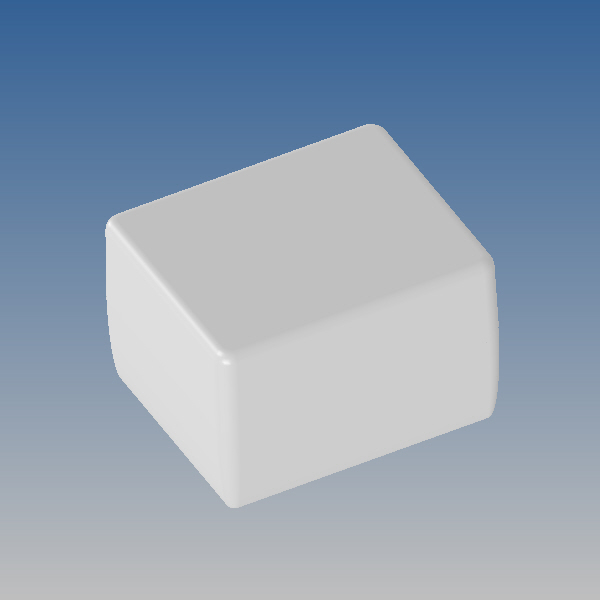

SR25-DB - OUT OF STOCK.7 76 63,5 48 9002
 TERLURAN GP-22 67,6 55,1 4   PDF
DWG
View

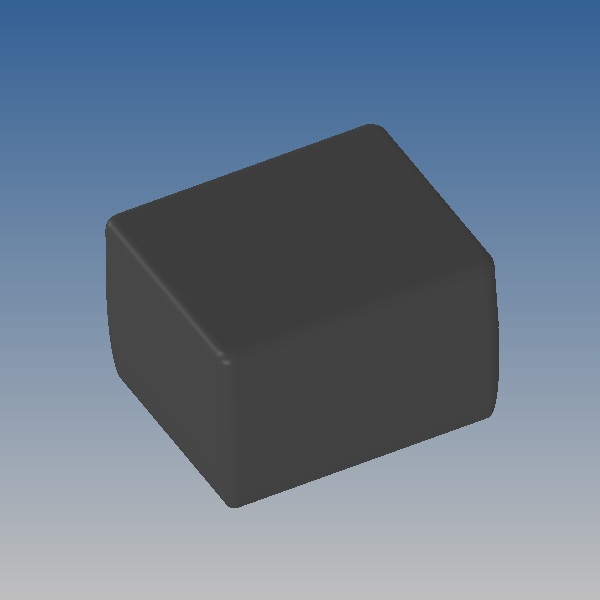

SR25-DB - OUT OF STOCK.9 76 63,5 48 9004
 TERLURAN GP-22 67,6 55,1 4   PDF
DWG
View

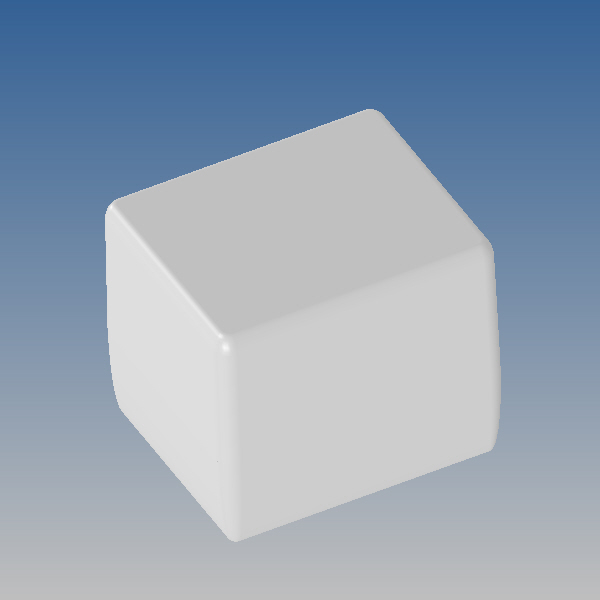

SR26-DB - OUT OF STOCK.7 76 63,5 63,4 9002
 TERLURAN GP-22 67,6 55,1 4   PDF
DWG
View

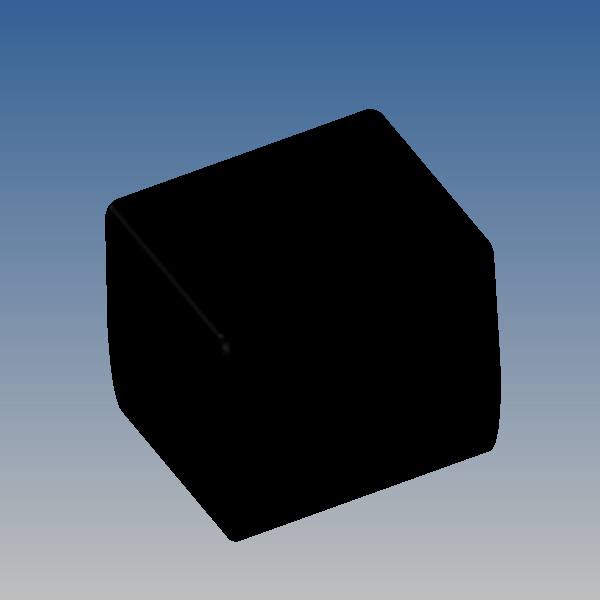

SR26-DB - OUT OF STOCK.9 76 63,5 63,4 9004
 TERLURAN GP-22 67,6 55,1 4   PDF
DWG
View

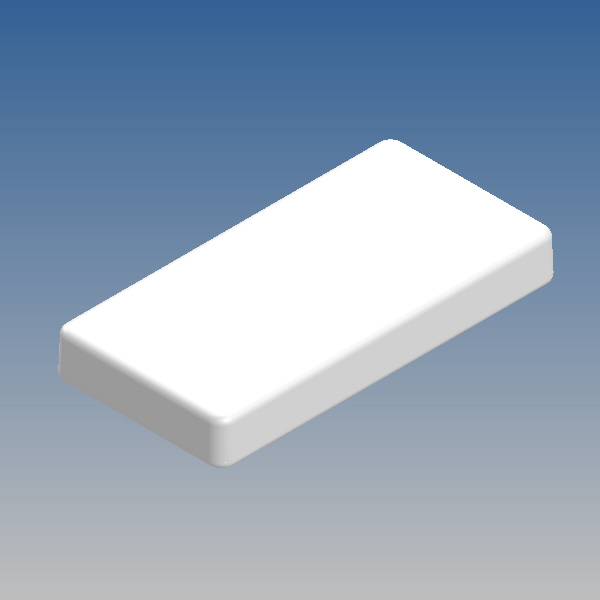

SR31 - OUT OF STOCK .7 128 64 16,5 9002
 TERLURAN GP-22 120,3 56,4 4   PDF
DWG
View

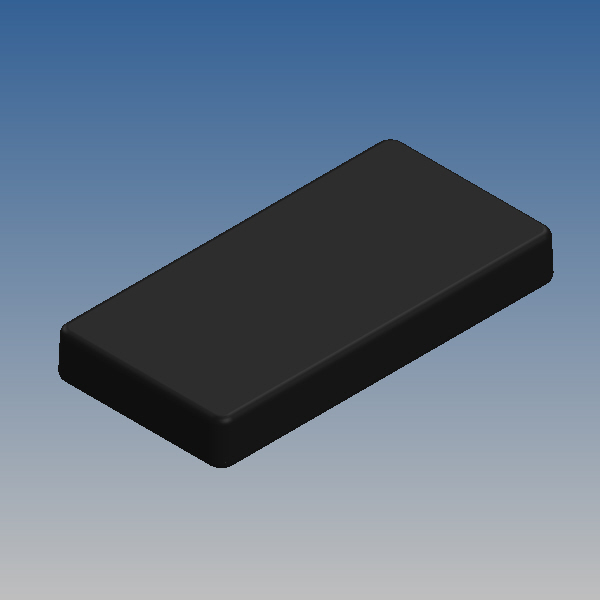

SR31 - OUT OF STOCK .9 128 64 16,5 9004
 TERLURAN GP-22 120,3 56,4 4   PDF
DWG
View

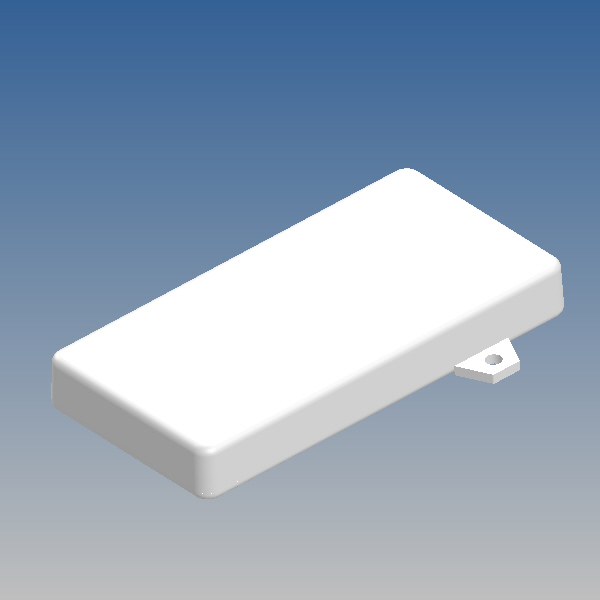

SR31-E - OUT OF STOCK.7 128 64 16,5 9002
 TERLURAN GP-22 120,3 56,4 4   PDF
DWG
View

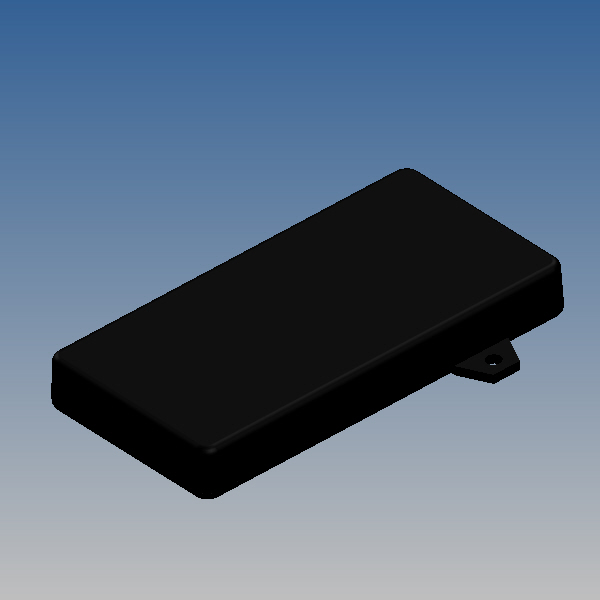

SR31-E - OUT OF STOCK.9 128 64 16,5 9004
 TERLURAN GP-22 120,3 56,4 4   PDF
DWG
View

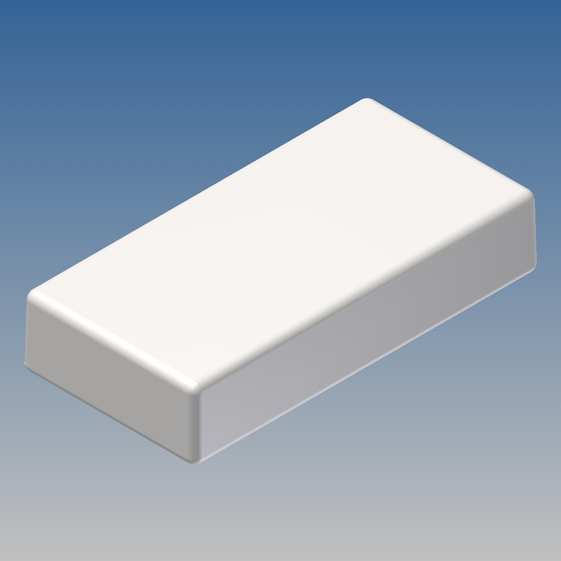

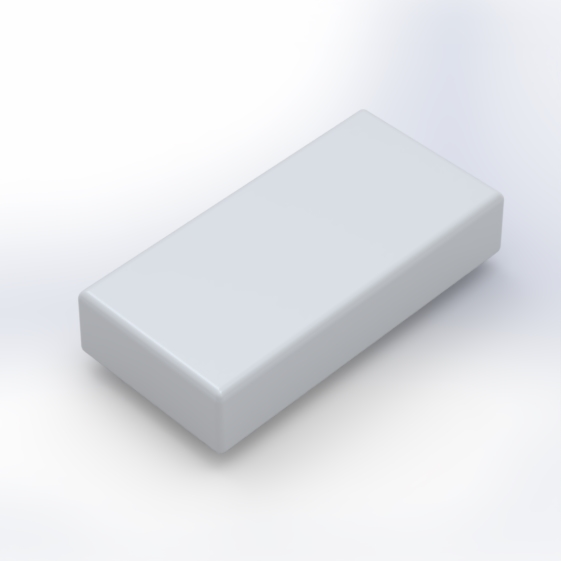

SR33 - OUT OF STOCK.7 128 64 26 9002
 TERLURAN GP-22 120,3 56,4 4 - PDF
DWG
View

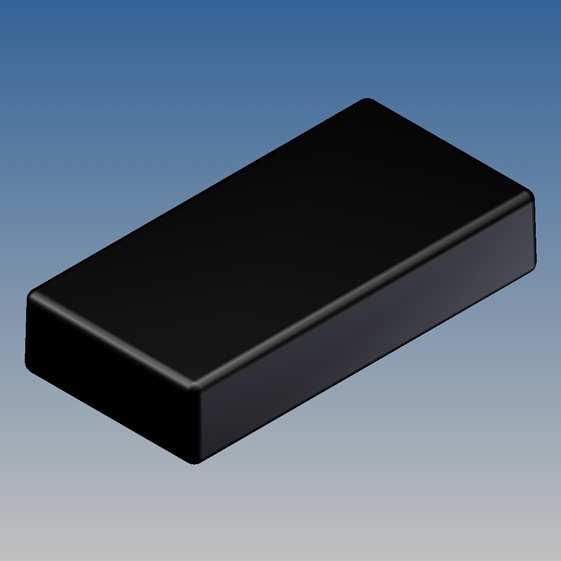

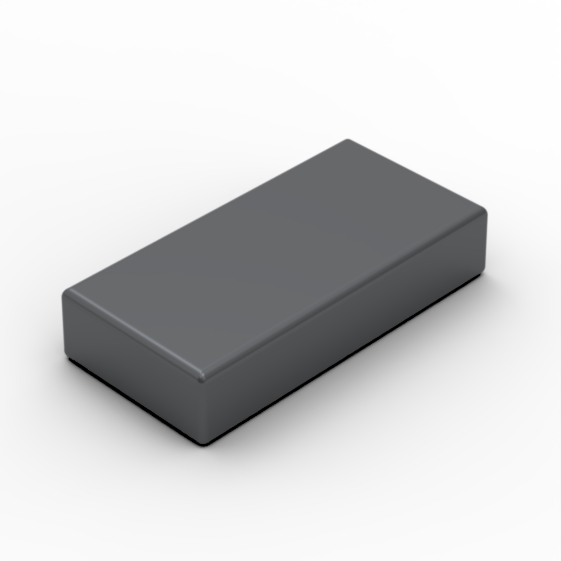

SR33 - OUT OF STOCK.9 128 64 26 9004
 TERLURAN GP-22 120,3 56,4 4 - PDF
DWG
View

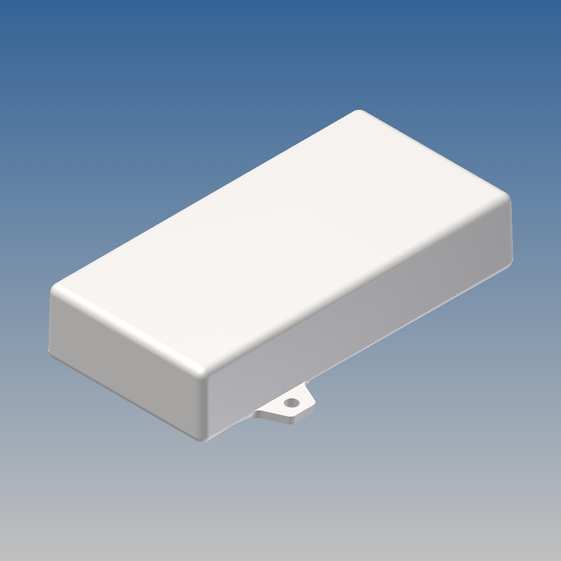

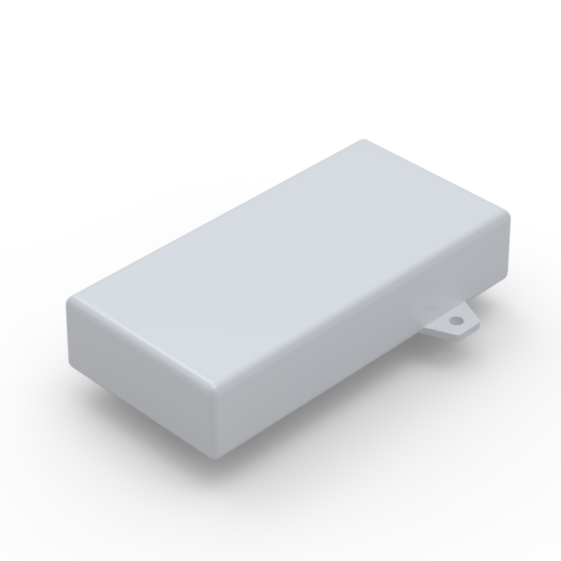

SR33-E.7 128 64 26 9002
 TERLURAN GP-22 120,3 56,4 4 - PDF
DWG
View

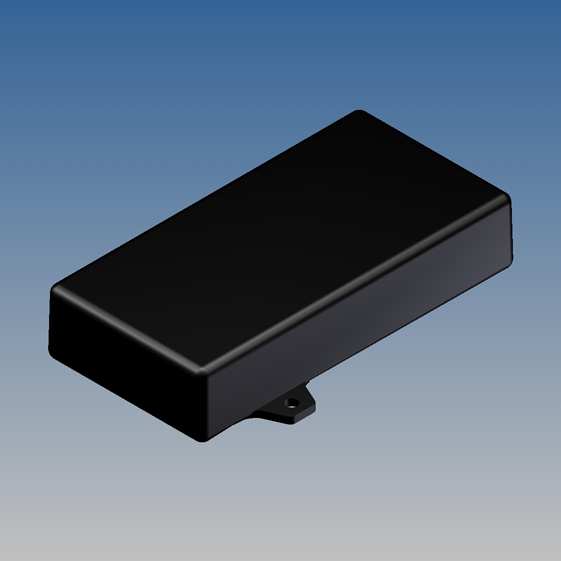

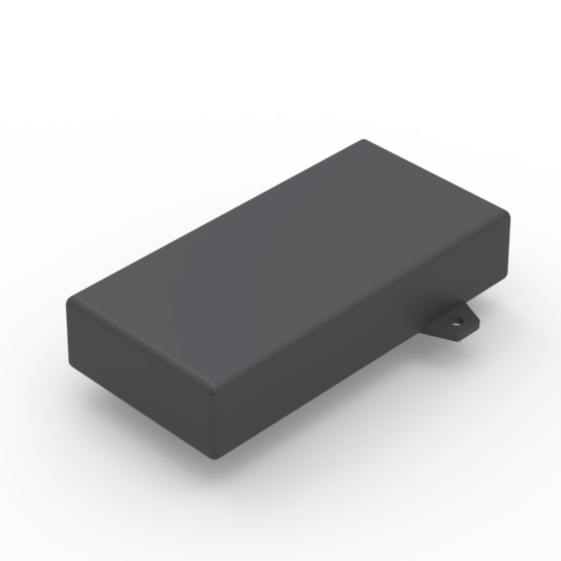

SR33-E.9 128 64 26 9004
 TERLURAN GP-22 120,3 56,4 4 - PDF
DWG
View

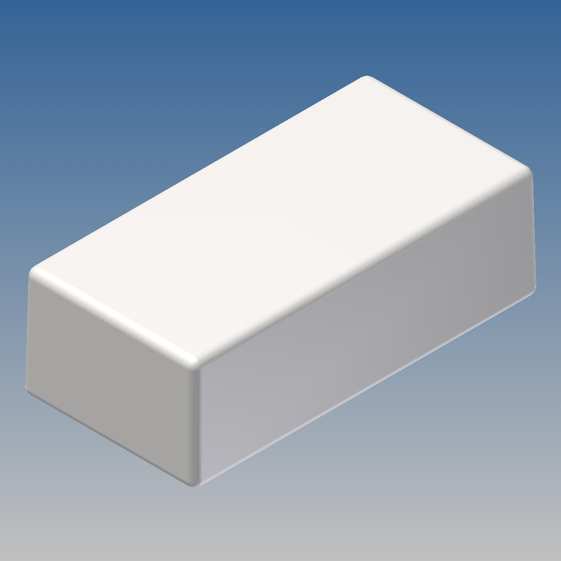

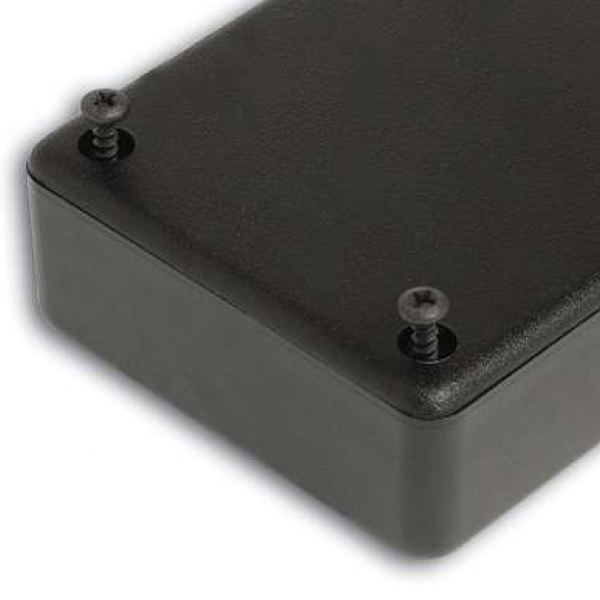

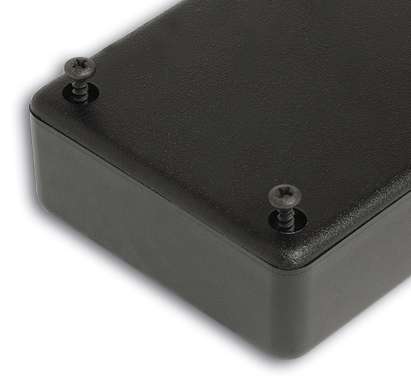

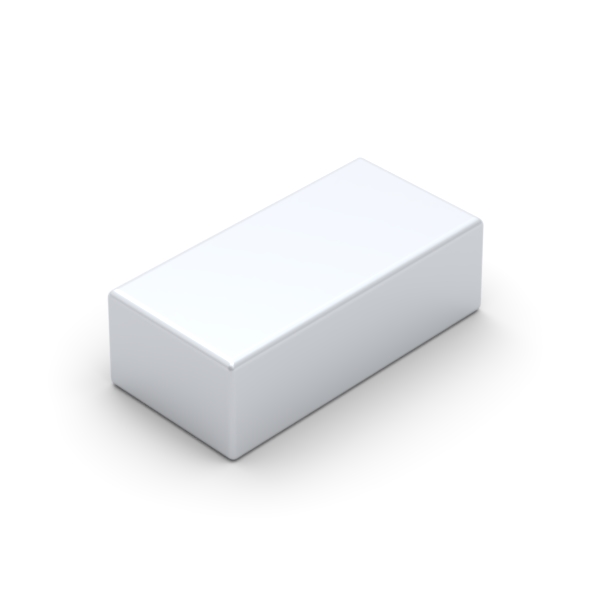

SR34.7 128 64 41 9002
 TERLURAN GP-22 120,3 56,4 4 - PDF
DWG
View

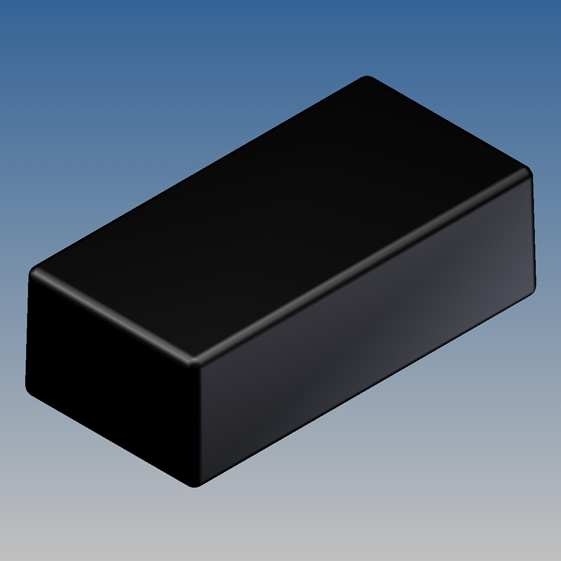

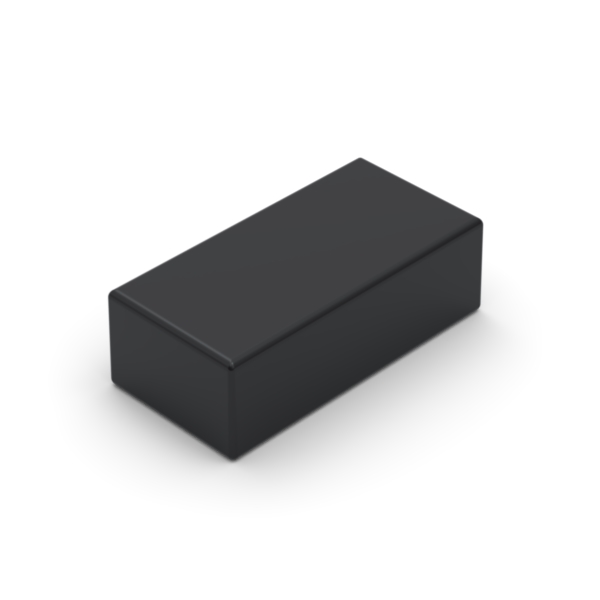

SR34.9 128 64 41 9004
 TERLURAN GP-22 120,3 56,4 4 - PDF
DWG
View

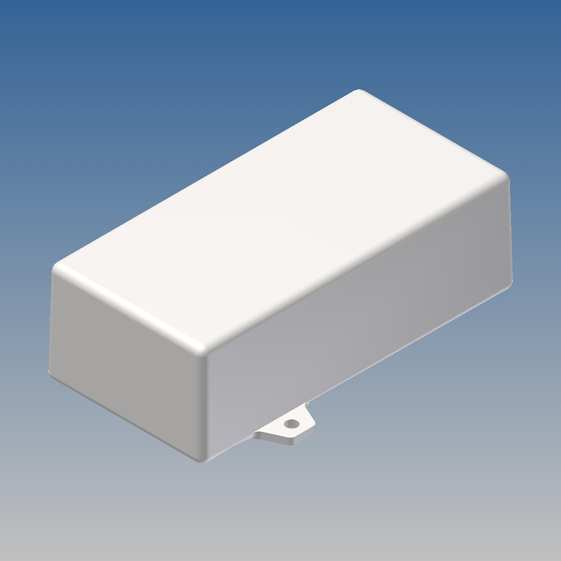

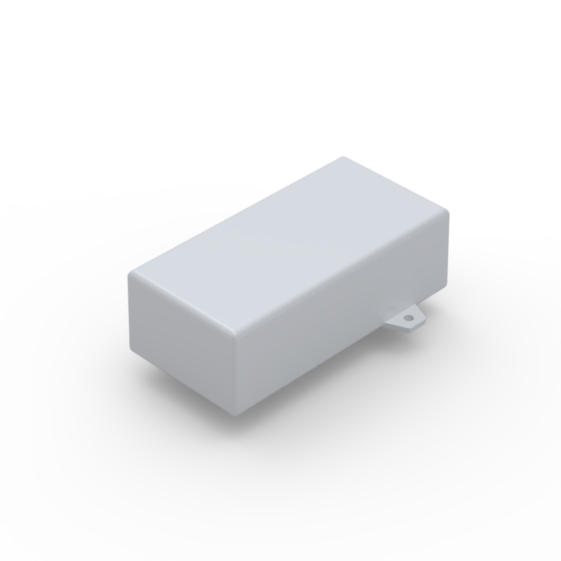

SR34-E.7 128 64 41 9002
 TERLURAN GP-22 120,3 56,4 4 - PDF
DWG
View

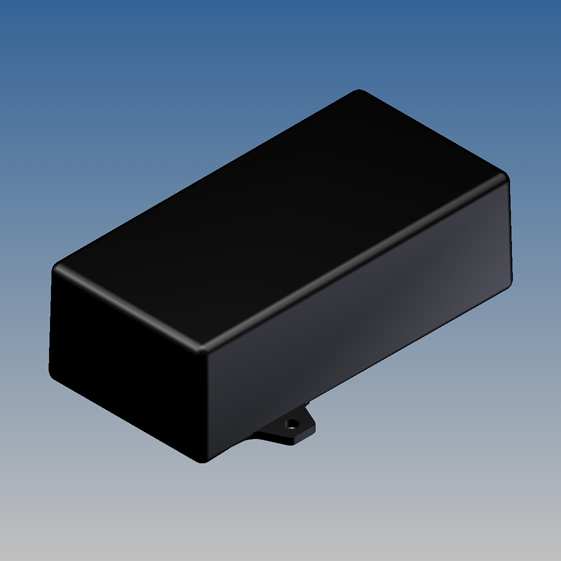

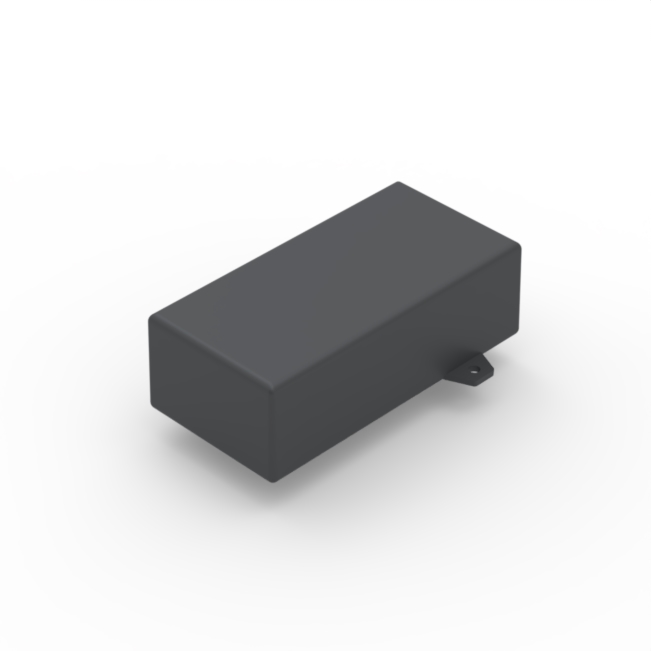

SR34-E.9 128 64 41 9004
 TERLURAN GP-22 120,3 56,4 4 - PDF
DWG
View

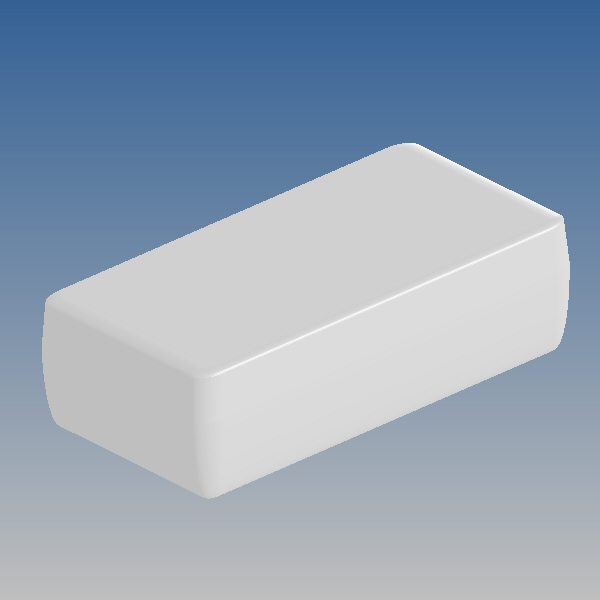

SR35-DB - OUT OF STOCK.7 128 64 38,7 9002
 TERLURAN GP-22 120,3 56,4 4   PDF
DWG
View

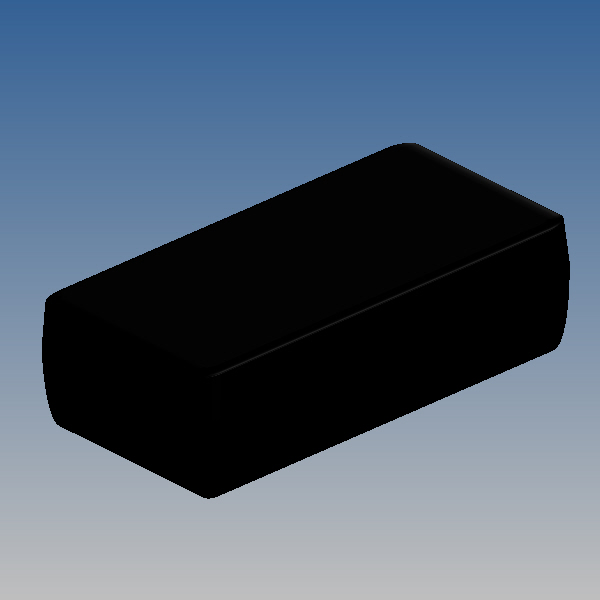

SR35-DB - OUT OF STOCK.9 128 64 38,7 9004
 TERLURAN GP-22 120,3 56,4 4   PDF
DWG
View

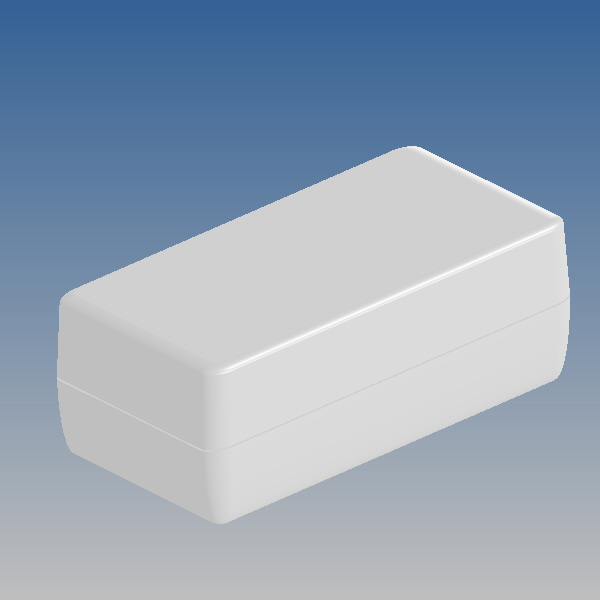

SR36-DB - OUT OF STOCK.7 128 63,5 48 9002
 TERLURAN GP-22 120,3 56,4 4   PDF
DWG
View

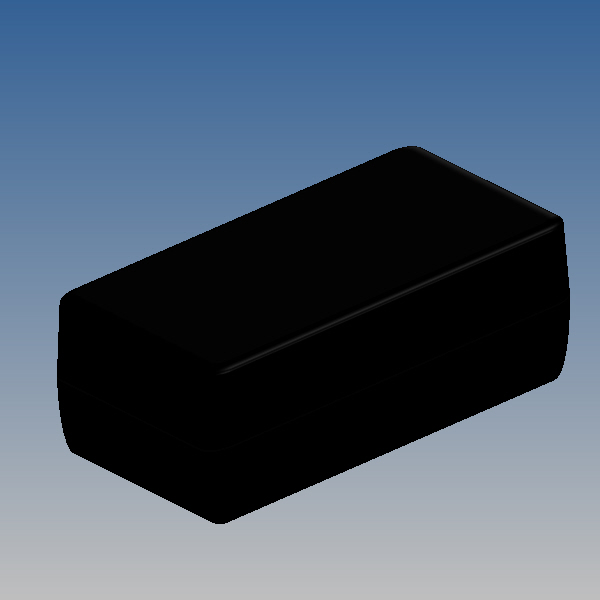

SR36-DB - OUT OF STOCK.9 128 63,5 48 9004
 TERLURAN GP-22 120,3 56,4 4   PDF
DWG
View

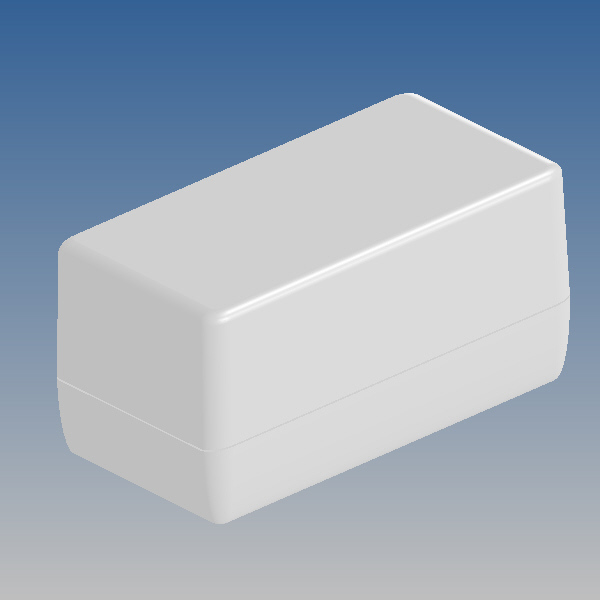

SR37-DB - OUT OF STOCK.7 128 63,5 63 9002
 TERLURAN GP-22 120,3 56,4 4   PDF
DWG
View

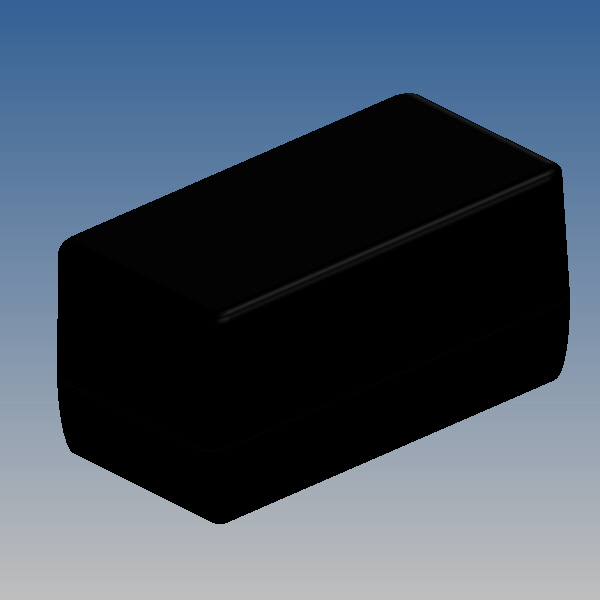

SR37-DB - OUT OF STOCK.9 128 63,5 63 9004
 TERLURAN GP-22 120,3 56,4 4   PDF
DWG
View
SR75.7 111,1 111,1 18,2 9002
 TERLURAN GP-22 103,5 103,5 4 - PDF
DWG
View

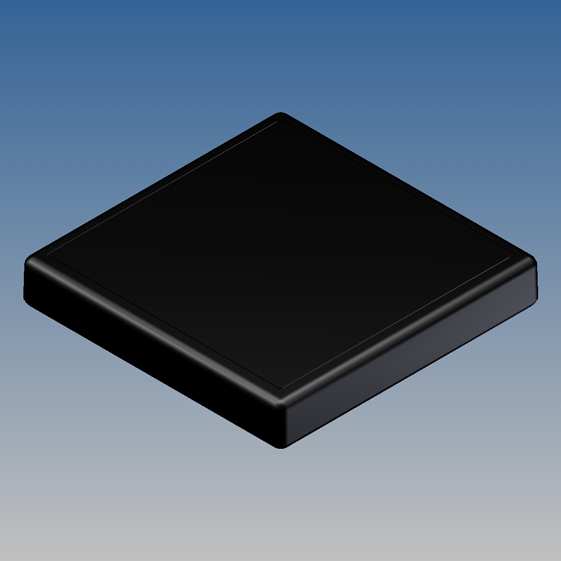

SR75.9 111,1 111,1 18,2 9004
 TERLURAN GP-22 103,5 103,5 4 - PDF
DWG
View

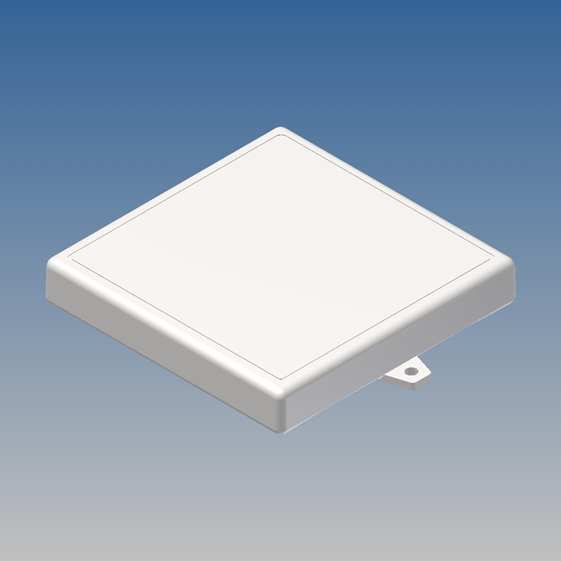

SR75-E.7 111,1 111,1 18,2 9002
 TERLURAN GP-22 103,5 103,5 4 - PDF
DWG
View

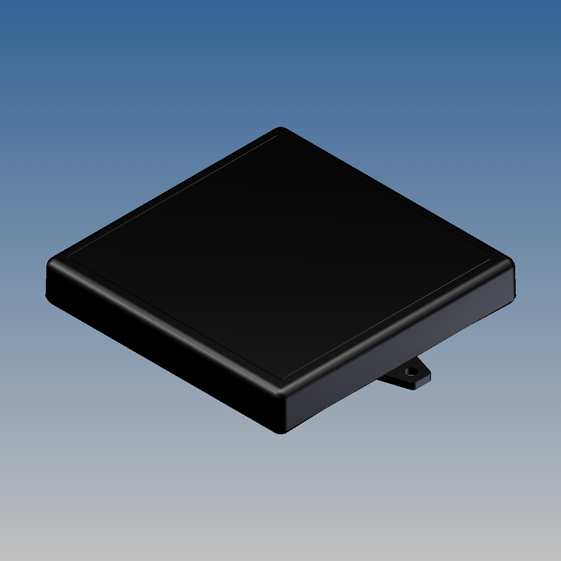

SR75-E.9 111,1 111,1 18,2 9004
 TERLURAN GP-22 103,5 103,5 4 - PDF
DWG
View
