Description

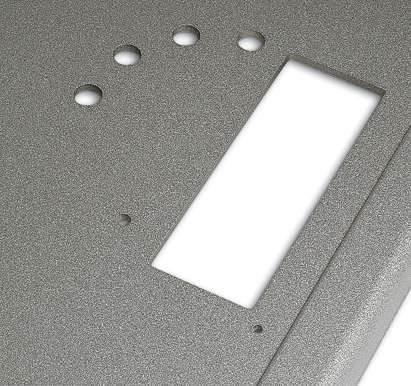

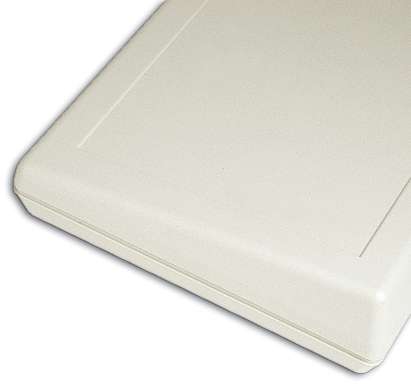

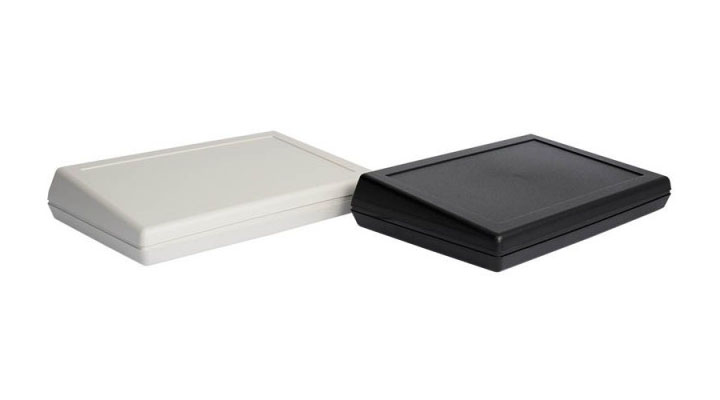

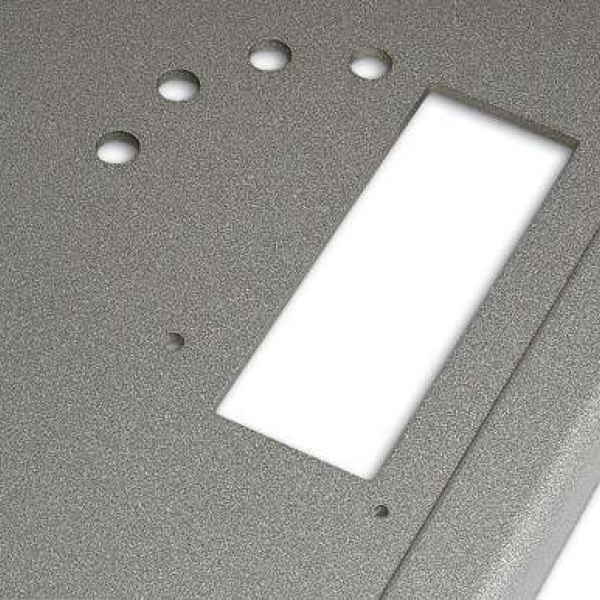

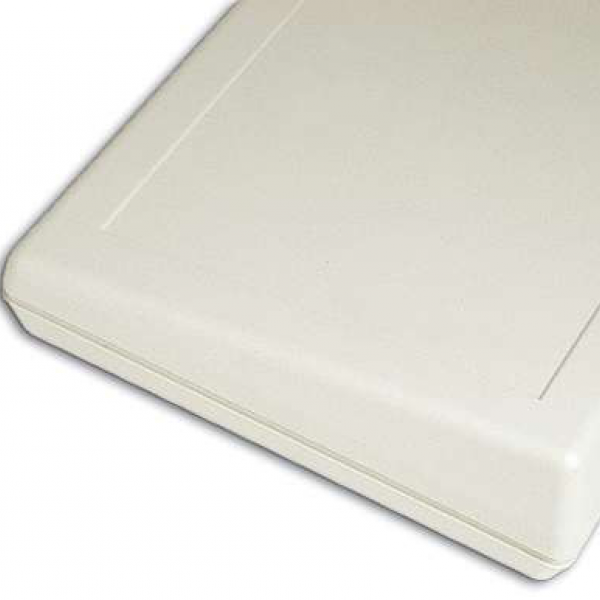

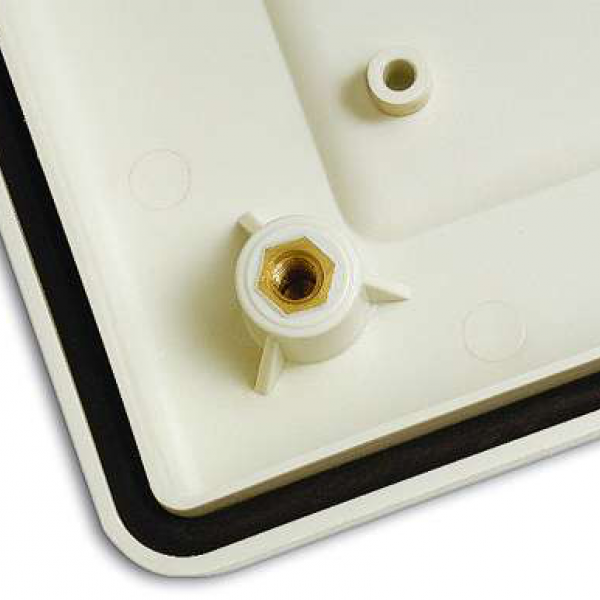

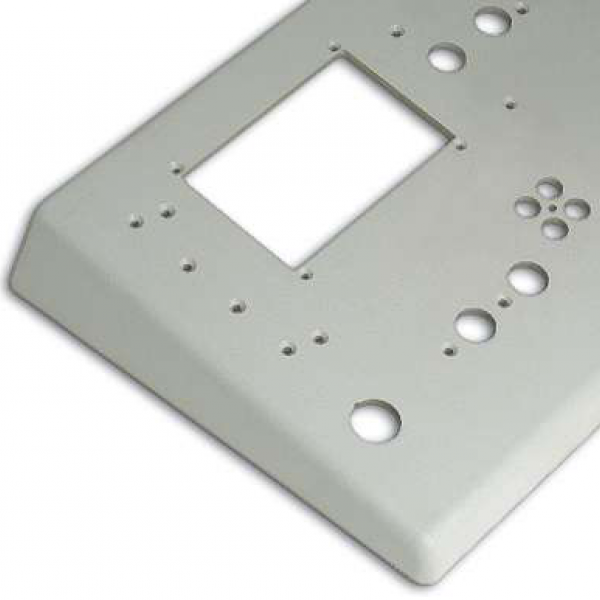

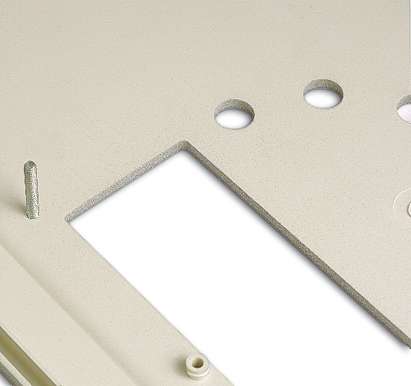

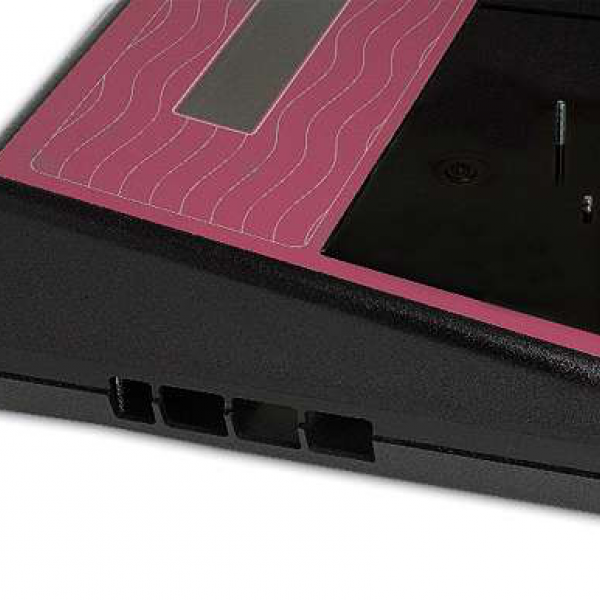

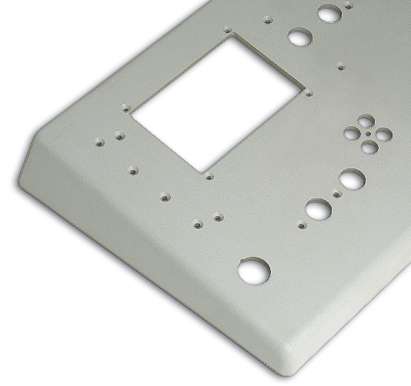

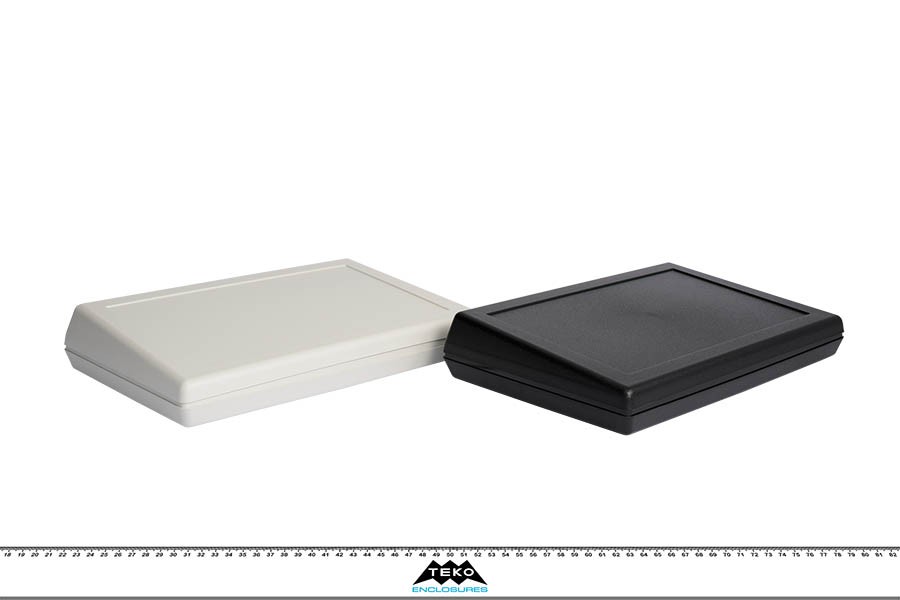

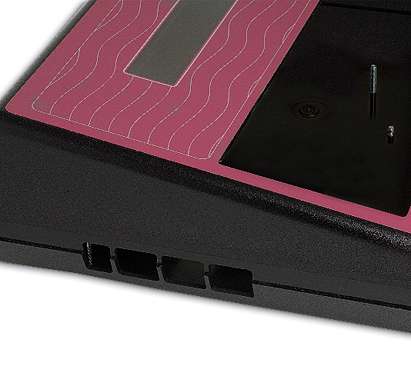

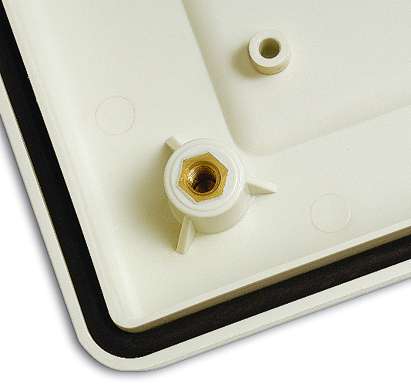

ABS cases with inclined cover. The base and the cover have integral PCB mounting studs. The models “PRO96” and “PRO96K” have the cover provided with a 1 mm recessed area for an easy assembly of membrane keyboards or aluminium panel. The model “PRO96K” has a IP65 sealing kit. Matt surface finish. Closing by four screws. Upon request aluminium panel (Mod. AP96).
Details
Products
| |
|---|---|

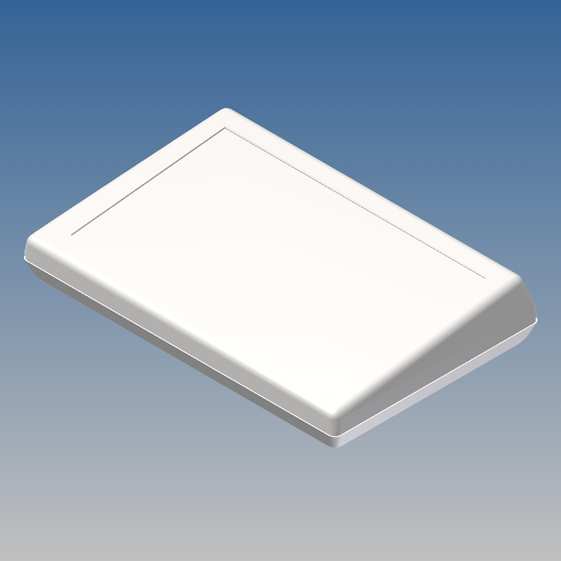

| Model | PRO96.7 |
| L (mm) | 320 |
| W (mm) | 210 |
| H (mm) | 62 |
| Color (Ral) |
9002 |
| Material | TR-UV |
| MAX PCB L (mm) | 301 |
| MAX PCB W (mm) | 191 |
| Screws | 4 |
| Battery | - |
| Accessories |
AP96 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

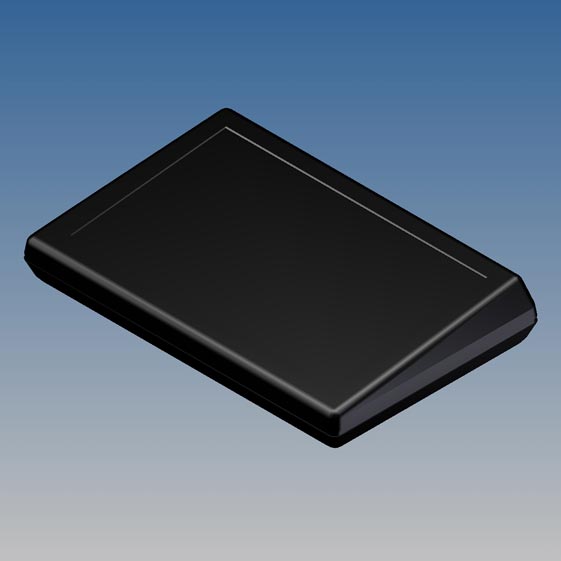

| Model | PRO96.9 |
| L (mm) | 320 |
| W (mm) | 210 |
| H (mm) | 62 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 301 |
| MAX PCB W (mm) | 191 |
| Screws | 4 |
| Battery | - |
| Accessories |
AP96 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

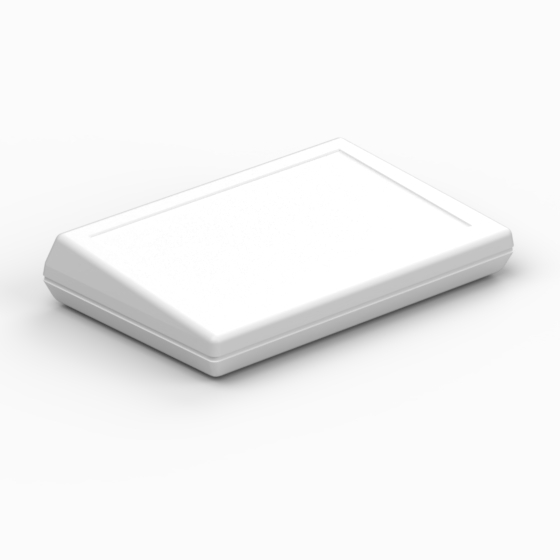

| Model | PRO96K.7 |
| L (mm) | 320 |
| W (mm) | 210 |
| H (mm) | 62 |
| Color (Ral) |
9002 |
| Material | TR-UV |
| MAX PCB L (mm) | 301 |
| MAX PCB W (mm) | 191 |
| Screws | 4 |
| Battery | - |
| Accessories |
AP96 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

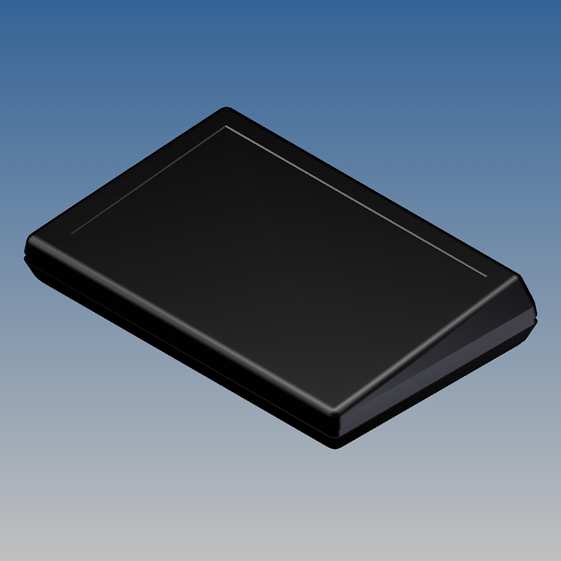

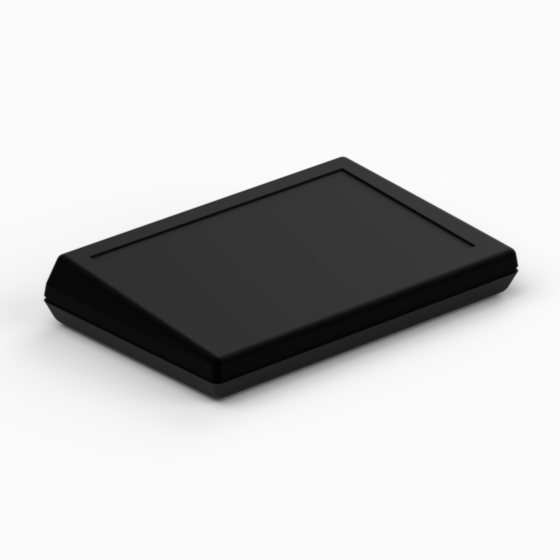

| Model | PRO96K.9 |
| L (mm) | 320 |
| W (mm) | 210 |
| H (mm) | 62 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 301 |
| MAX PCB W (mm) | 191 |
| Screws | 4 |
| Battery | - |
| Accessories |
AP96 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PRO96.7 | 320 | 210 | 62 |
9002 |
TR-UV | 301 | 191 | 4 | - |
AP96 |
PDF DWG |
View
|
|
|
PRO96.9 | 320 | 210 | 62 |
9004 |
P2H-AT | 301 | 191 | 4 | - |
AP96 |
PDF DWG |
View
|
|
|
PRO96K.7 | 320 | 210 | 62 |
9002 |
TR-UV | 301 | 191 | 4 | - |
AP96 |
PDF DWG |
View
|
|
|
PRO96K.9 | 320 | 210 | 62 |
9004 |
P2H-AT | 301 | 191 | 4 | - |
AP96 |
PDF DWG |
View
|
