Description

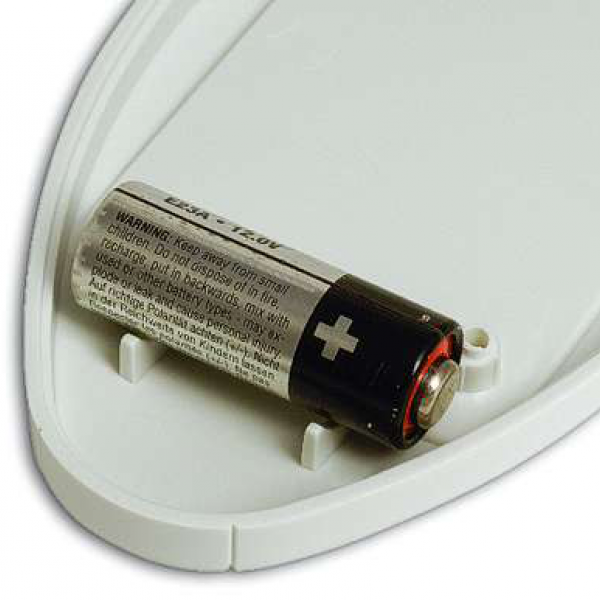

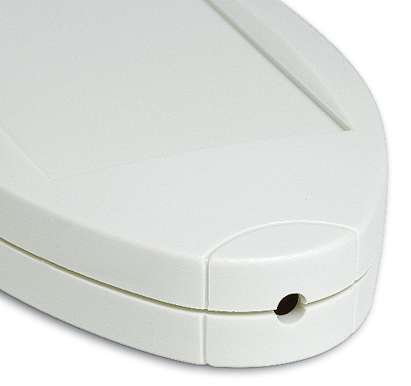

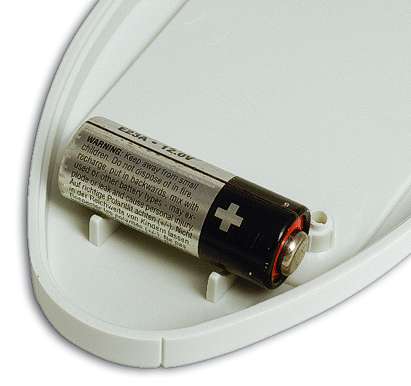

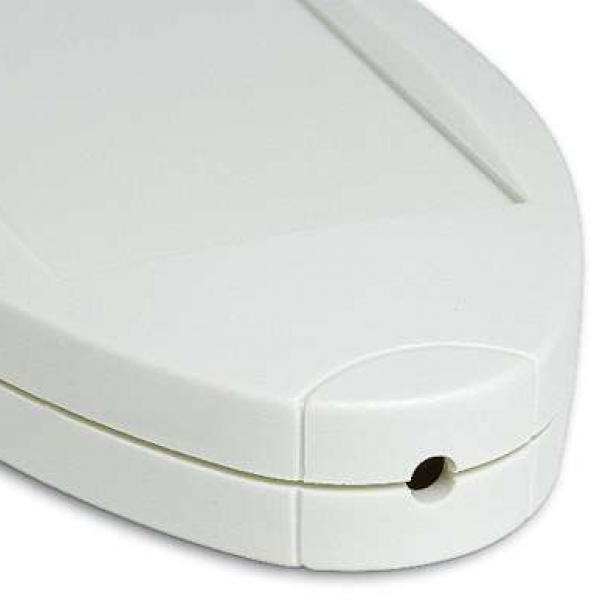

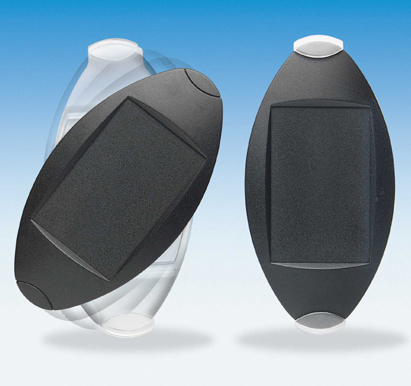

Ergonomic designed ABS enclosures with a recessed operating area for membrane keyboard. Matt surface finish. Space for a 12V battery or small 3V round cells. The model “OVO-2IR” has a front opening for a LED. Closing by two screws.
Details
Products
| |
|---|---|

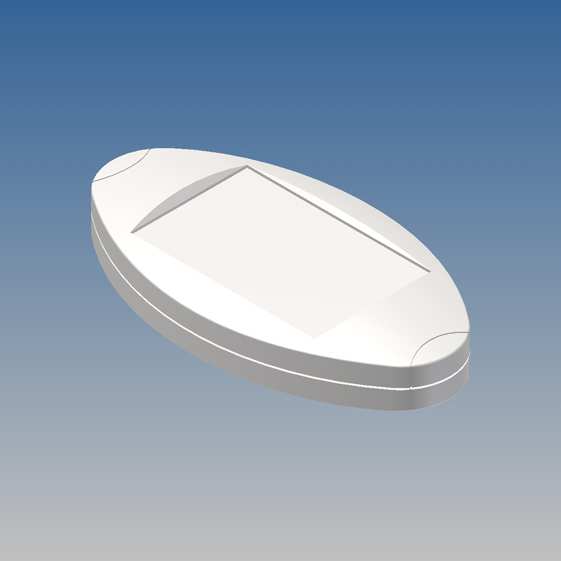

| Model | OVO-2.7 |
| L (mm) | 95,5 |
| W (mm) | 51 |
| H (mm) | 17,3 |
| Color (Ral) |
9002 |
| Material | L320 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 2 |
| Battery | 1x12V / 1x3V |
| Accessories |
M50 M51 M52 MT5 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

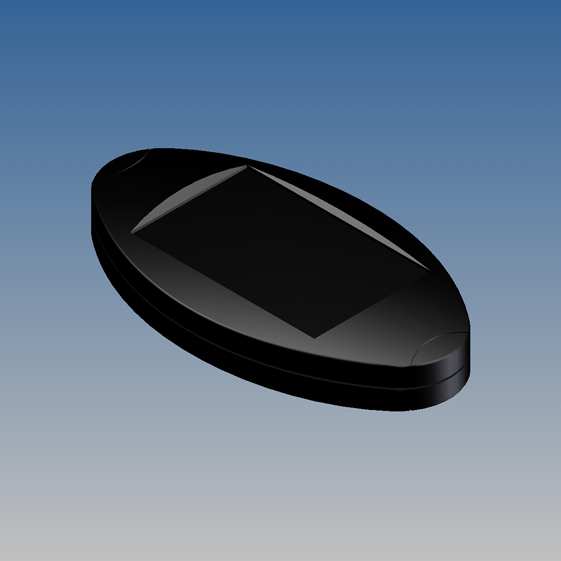

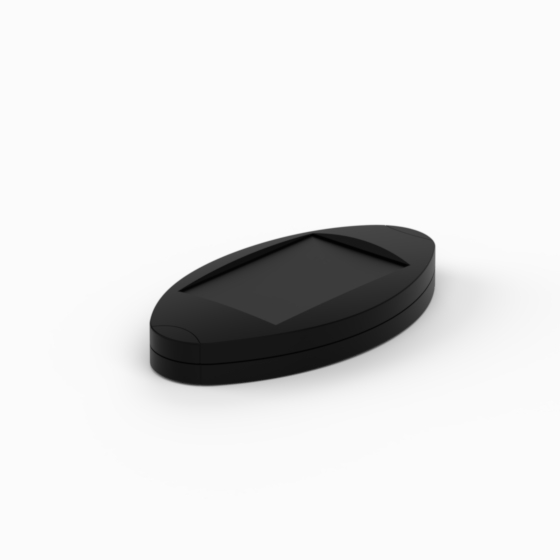

| Model | OVO-2.9 |
| L (mm) | 95,5 |
| W (mm) | 51 |
| H (mm) | 17,3 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 2 |
| Battery | 1x12V / 1x3V |
| Accessories |
M50 M51 M52 MT5 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

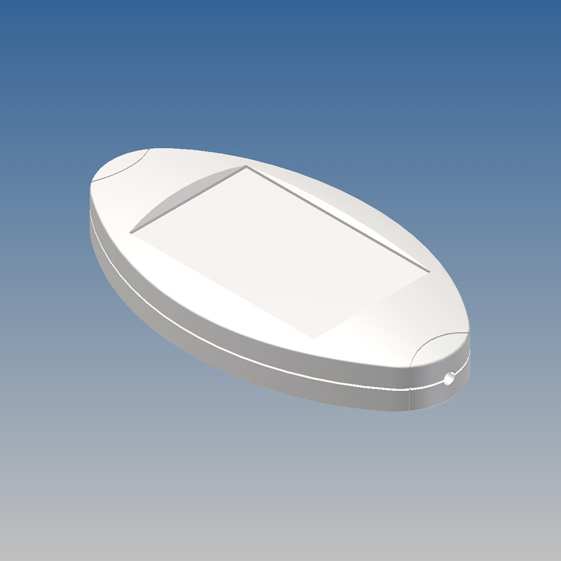

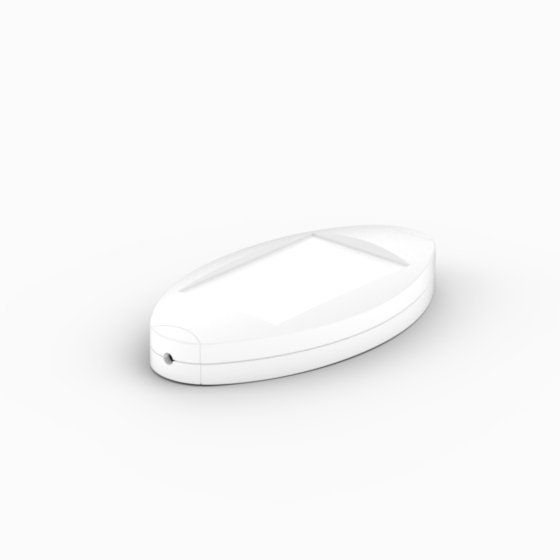

| Model | OVO-2IR.7 |
| L (mm) | 95,5 |
| W (mm) | 51 |
| H (mm) | 17,3 |
| Color (Ral) |
9002 |
| Material | L320 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 2 |
| Battery | 1x12V / 1x3V |
| Accessories |
M50 M51 M52 MT5 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

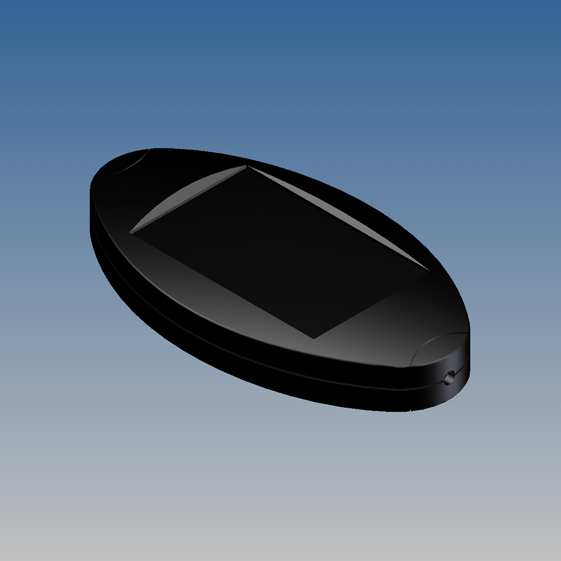

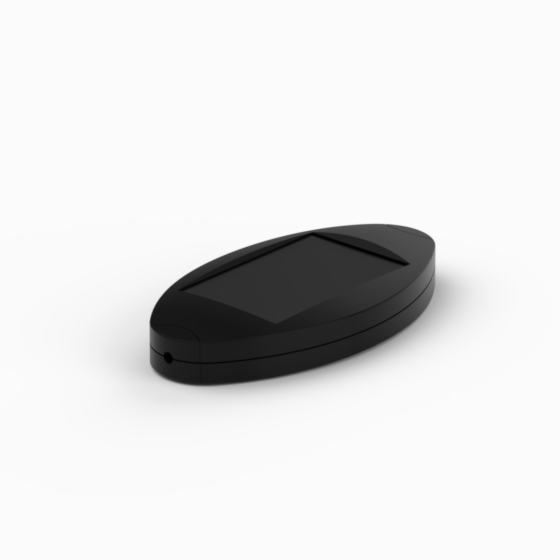

| Model | OVO-2IR.9 |
| L (mm) | 95,5 |
| W (mm) | 51 |
| H (mm) | 17,3 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | 2 |
| Battery | 1x12V / 1x3V |
| Accessories |
M50 M51 M52 MT5 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
OVO-2.7 | 95,5 | 51 | 17,3 |
9002 |
L320 | - | - | 2 | 1x12V / 1x3V |
M50 M51 M52 MT5 |
PDF DWG |
View
|
|
|
OVO-2.9 | 95,5 | 51 | 17,3 |
9004 |
P2H-AT | - | - | 2 | 1x12V / 1x3V |
M50 M51 M52 MT5 |
PDF DWG |
View
|
|
|
OVO-2IR.7 | 95,5 | 51 | 17,3 |
9002 |
L320 | - | - | 2 | 1x12V / 1x3V |
M50 M51 M52 MT5 |
PDF DWG |
View
|
|
|
OVO-2IR.9 | 95,5 | 51 | 17,3 |
9004 |
P2H-AT | - | - | 2 | 1x12V / 1x3V |
M50 M51 M52 MT5 |
PDF DWG |
View
|
