Description

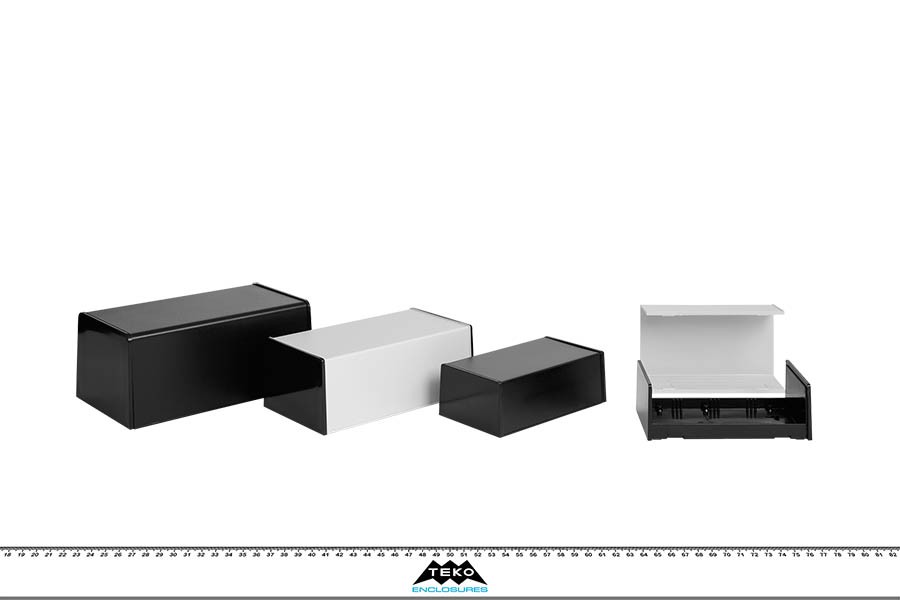

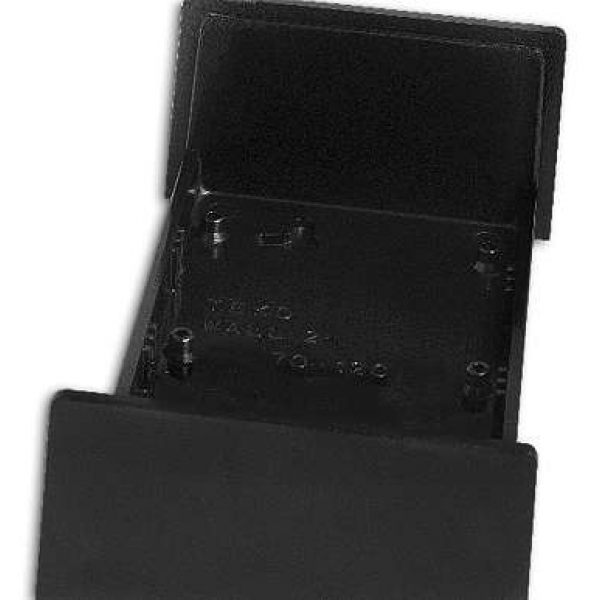

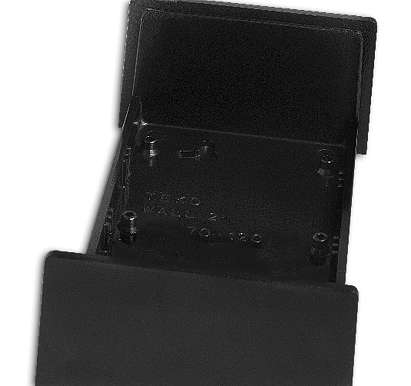

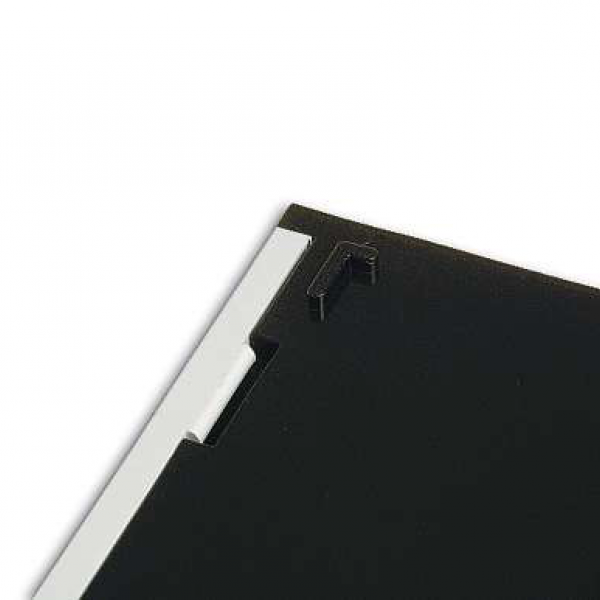

ABS enclosures with two snap together half-shells (one base/one cover) especially suited to wall mounting, available in either a solid (black) or a two-tone colour configuration (the base is always black). The base has integral PCB mounting studs and guides. No screws are required.
Details
Products
| |
|---|---|

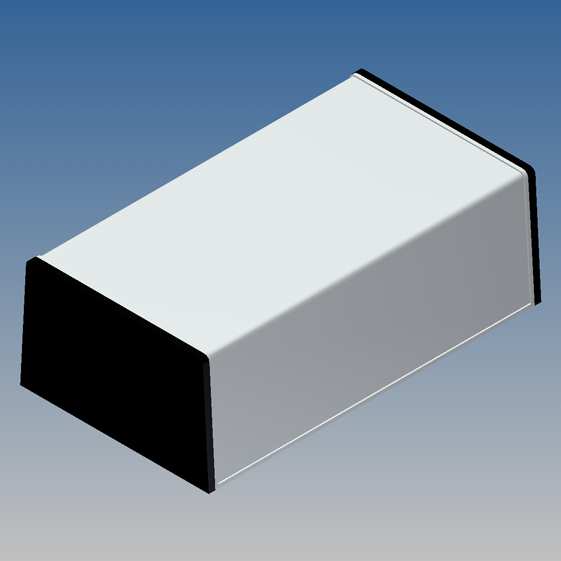

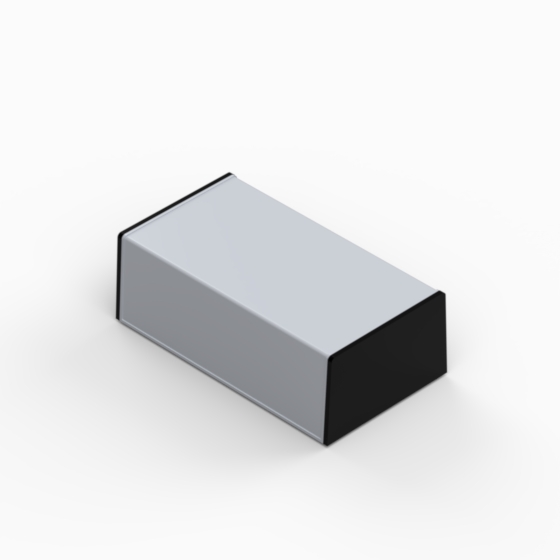

| Model | WALL2.23 |
| L (mm) | 122,5 |
| W (mm) | 69,5 |
| H (mm) | 43,1 |
| Color (Ral) |
9004 9018 |
| Material | P2H-AT - AG-ATY |
| MAX PCB L (mm) | 114 |
| MAX PCB W (mm) | 54 |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

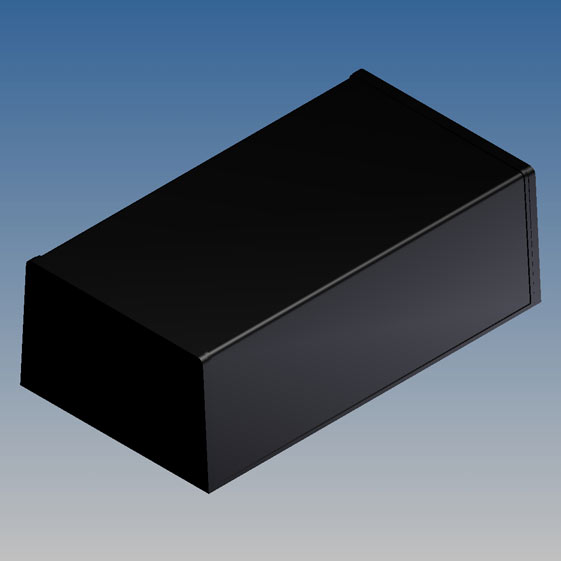

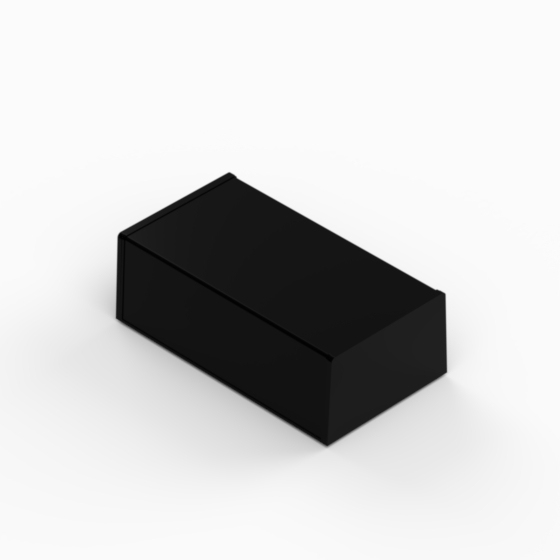

| Model | WALL2.9 |
| L (mm) | 122,5 |
| W (mm) | 69,5 |
| H (mm) | 43,1 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 114 |
| MAX PCB W (mm) | 54 |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

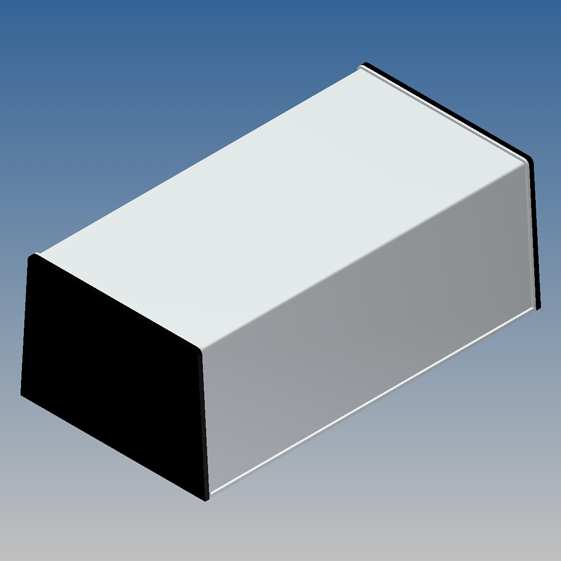

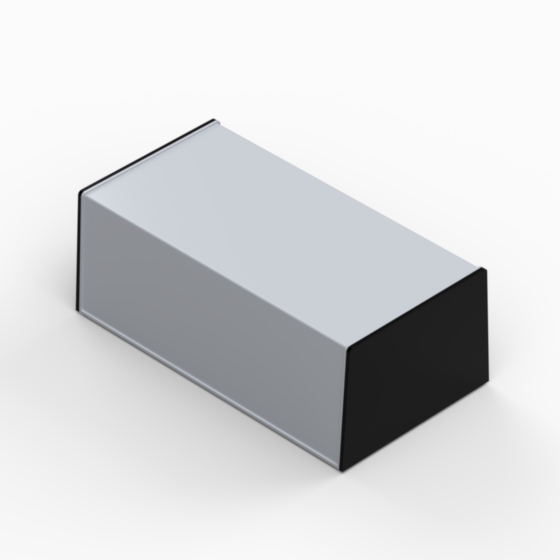

| Model | WALL3.23 |
| L (mm) | 154,5 |
| W (mm) | 85 |
| H (mm) | 59 |
| Color (Ral) |
9004 9018 |
| Material | P2H-AT - AG-ATY |
| MAX PCB L (mm) | 146 |
| MAX PCB W (mm) | 69 |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

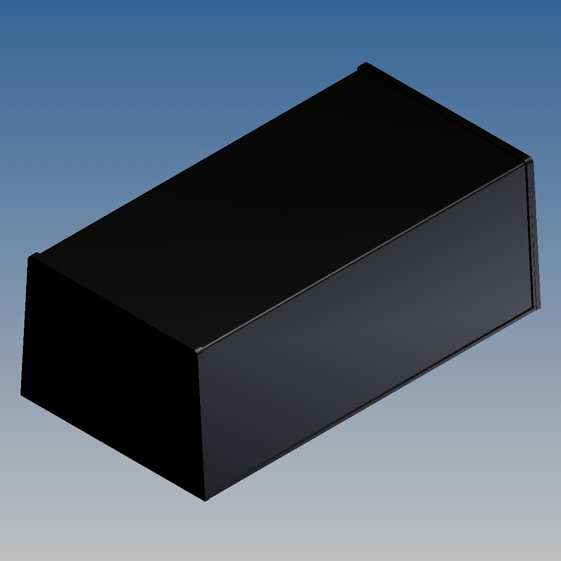

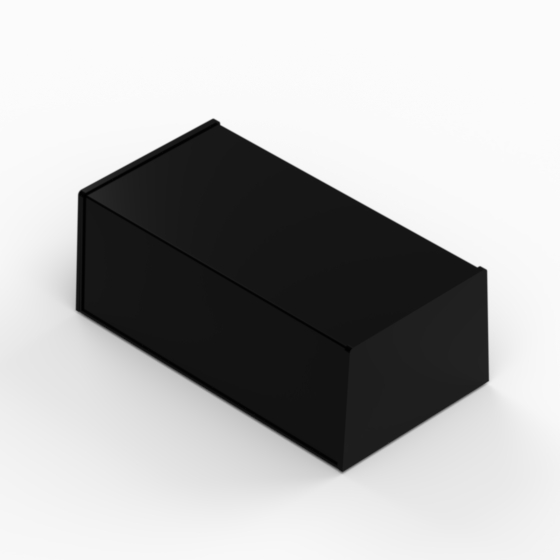

| Model | WALL3.9 |
| L (mm) | 154,5 |
| W (mm) | 85 |
| H (mm) | 59 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 146 |
| MAX PCB W (mm) | 69 |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

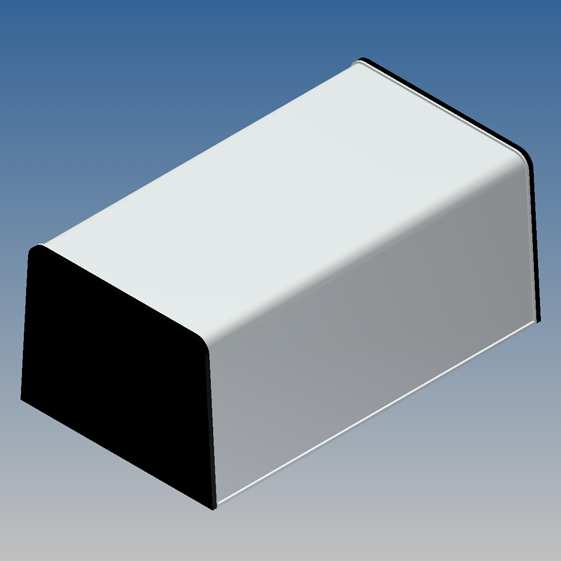

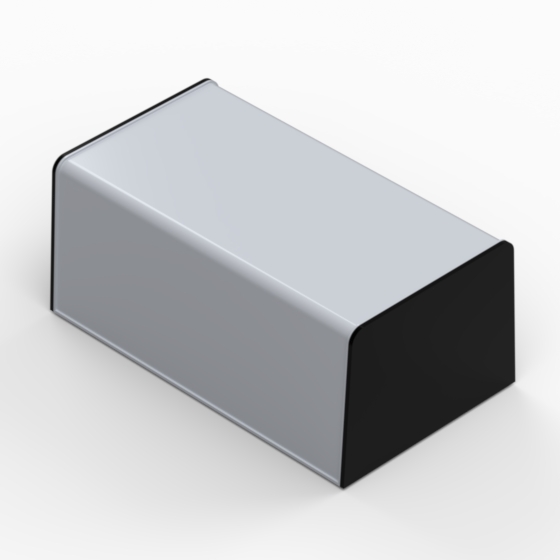

| Model | WALL4.23 |
| L (mm) | 170 |
| W (mm) | 99,5 |
| H (mm) | 74 |
| Color (Ral) |
9004 9018 |
| Material | P2H-AT - AG-ATY |
| MAX PCB L (mm) | 161 |
| MAX PCB W (mm) | 84 |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

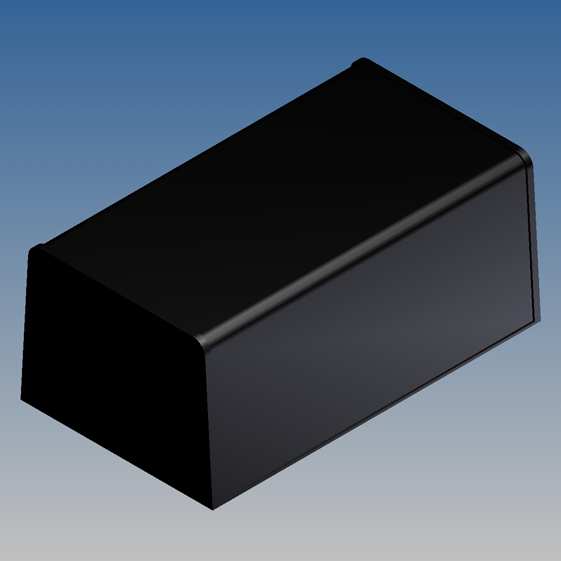

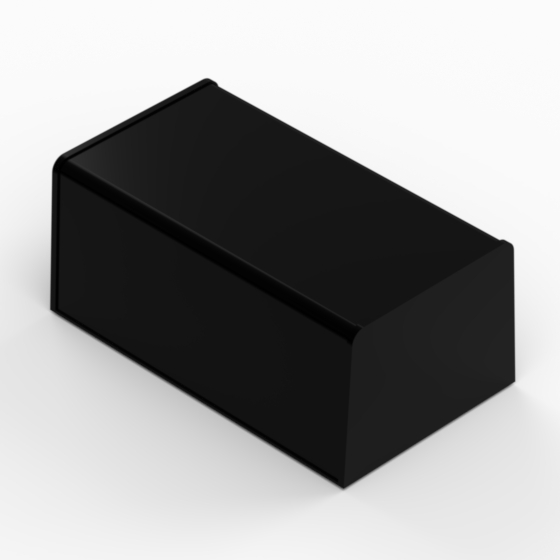

| Model | WALL4.9 |
| L (mm) | 170 |
| W (mm) | 99,5 |
| H (mm) | 74 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 161 |
| MAX PCB W (mm) | 84 |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
WALL2.23 | 122,5 | 69,5 | 43,1 |
9004 9018 |
P2H-AT - AG-ATY | 114 | 54 | - | - |
PDF DWG |
View
|
|
|
|
WALL2.9 | 122,5 | 69,5 | 43,1 |
9004 |
P2H-AT | 114 | 54 | - | - |
PDF DWG |
View
|
|
|
|
WALL3.23 | 154,5 | 85 | 59 |
9004 9018 |
P2H-AT - AG-ATY | 146 | 69 | - | - |
PDF DWG |
View
|
|
|
|
WALL3.9 | 154,5 | 85 | 59 |
9004 |
P2H-AT | 146 | 69 | - | - |
PDF DWG |
View
|
|
|
|
WALL4.23 | 170 | 99,5 | 74 |
9004 9018 |
P2H-AT - AG-ATY | 161 | 84 | - | - |
PDF DWG |
View
|
|
|
|
WALL4.9 | 170 | 99,5 | 74 |
9004 |
P2H-AT | 161 | 84 | - | - |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
